3740 TL Link-Belt excavator specs & Dimensions (2019 - 2026)

Link-Belt 3740 TL is a crawler excavator manufactured since 2019, with a weight of 38.9 tons. It features a track width of 700 mm,…

Link-Belt 3740 TL is a crawler excavator manufactured since 2019, with a weight of 38.9 tons. It features a track width of 700 mm, a transport length of 14.1 meters, a transport width of 3.59 meters, and a transport height of 5.21 meters. The machine has a dredging depth of 3.98 meters and a maximum horizontal reach of 11.47 meters.

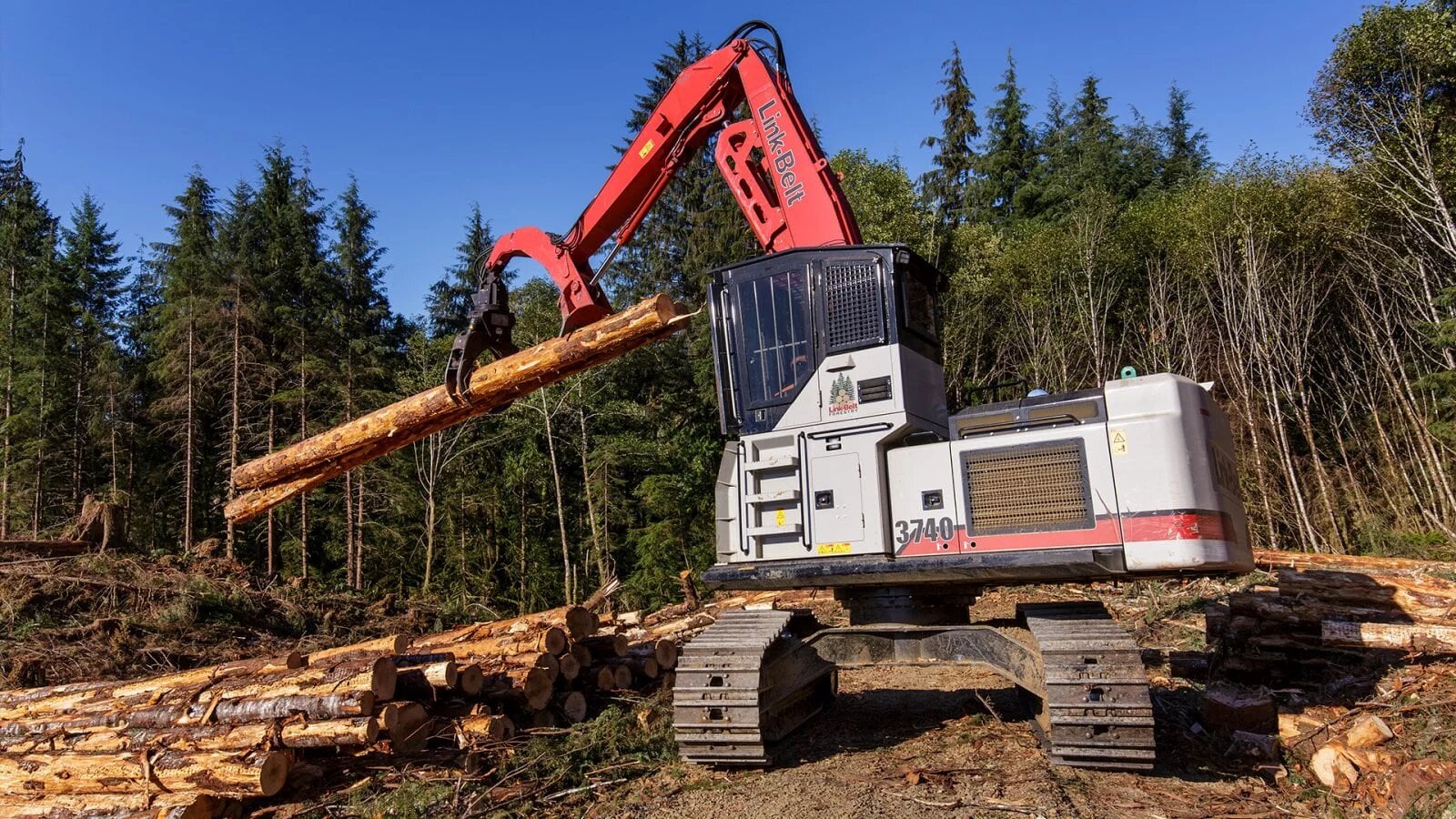

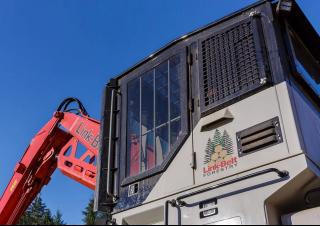

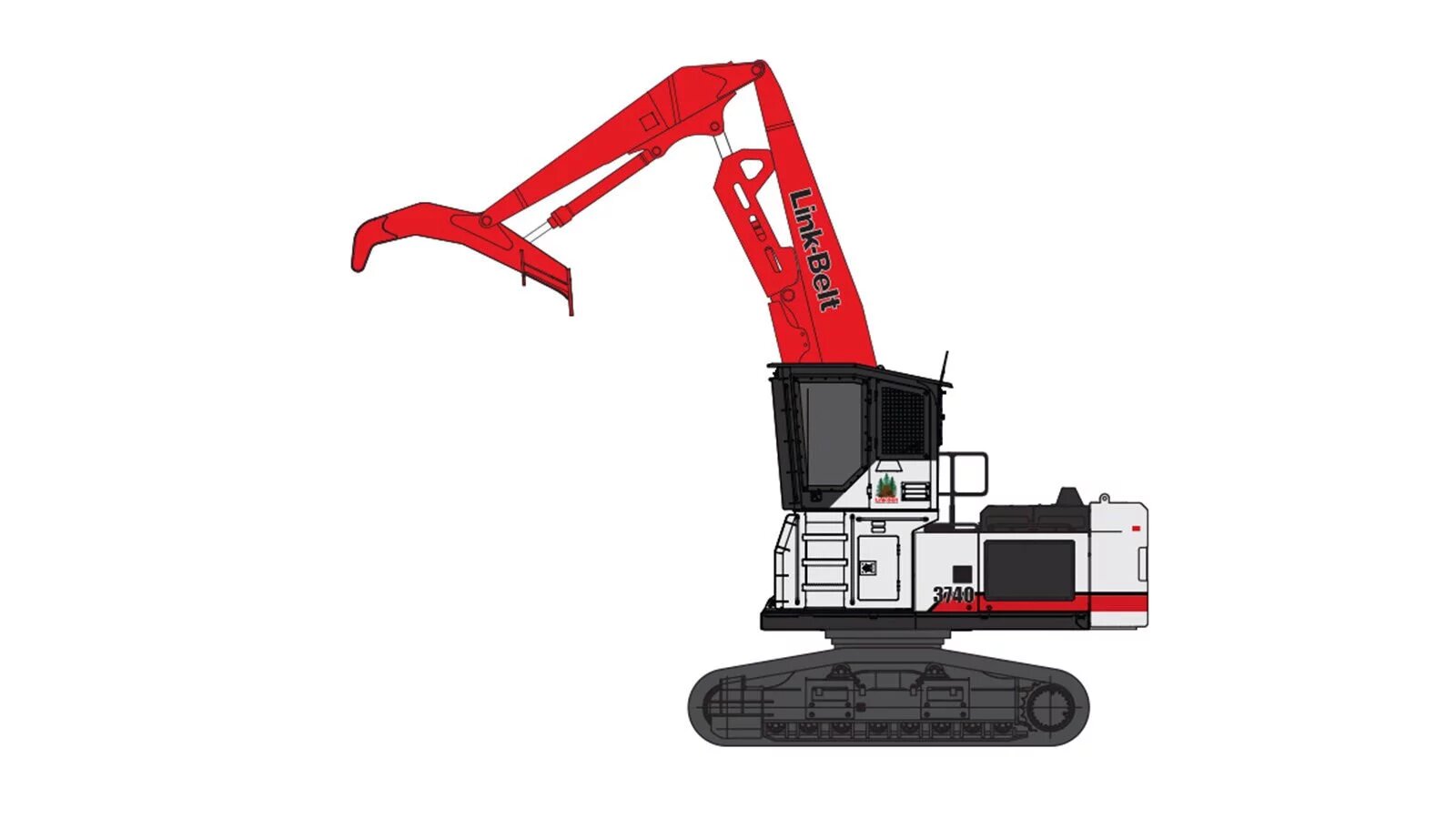

Crawler Excavators Link-Belt 3740 TL
Crawler Excavators Link-Belt 3740 TL
Crawler Excavators Link-Belt 3740 TL
Crawler Excavators Link-Belt 3740 TL
Crawler Excavators Link-Belt 3740 TL
Crawler Excavators Link-Belt 3740 TL
Crawler Excavators Link-Belt 3740 TL
Crawler Excavators Link-Belt 3740 TL

Technical specs - 3740 TL Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
38.9 t
Transport length
14.1 m
Transport width
3.59 m
Transport height
5.21 m
Track width
700 mm
Max. Reach horizontal
11.47 m
Dredging depth
3.98 m
Model series
3740
Engine manuf.
Isuzu
Engine type
AQ-4HK1X
Engine power
132 kW
Displacement
5.2 l
Revolutions at max torque
1800 rpm
Max. torque
621 Nm
No. of cylinders
4
Emission level
Tier 4f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 3740 TL FAQ

When was the Link-Belt 3740 TL manufactured?

The Link-Belt 3740 TL was first produced in 2019.

How much does the Link-Belt 3740 TL weigh?

The Link-Belt 3740 TL weighs 38.9 tons.

What are the transport dimensions of the Link-Belt 3740 TL crawler excavator?

The Link-Belt 3740 TL crawler excavator has a transport length of 14.1 meters, a transport width of 3.59 meters, and a transport height of 5.21 meters.

What is the track width of the Link-Belt 3740 TL's undercarriage?

The Link-Belt 3740 TL has a track width of 700 mm in its undercarriage.

What are the excavation performance specifications of the Link-Belt 3740 TL?

The Link-Belt 3740 TL has a dredging depth of 3.98 meters and a maximum horizontal reach of 11.47 meters.

How much is a Link-Belt 3740 TL Crawler excavator (2019u20132025) worth?

The residual value of the Link-Belt 3740 TL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Link-Belt 3740 TL overview

Engine

FREE Subscription Includes:

24 / 7 Remote Monitoring and Security Machine Location Geo-fence & Curfew Range Actual Fuel Consumption Fuel Levels Hour Meter Reading Radiator Water Temperature Machine Working Time/Idle Time Attachment Working Hours Working Modes Service Maintenance Reminders Service Warnings


RemoteCARE App

Manage your Link-Belt equipment with this user friendly telematics management tool with GPS technology. The RemoteCARE App provides timely and reliable machine utilization. App features include... Machine location Fuel efficiency Fuel consumption Utilization report Idle rate DTC notification history Analytical snapshots Favorite list. Download Apple or Android app at lbxco.com/apps for phone & tablet.


Undercarriage

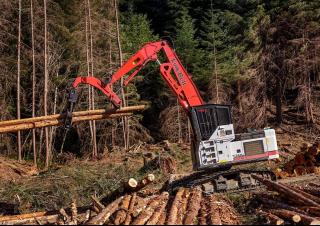

Timber Loaders

We’ve earned our reputation for building strong and dependable log loaders for use in the woods or millyards. Our loaders can be equipped with Fixed or Live-Heel booms to handle large diameter logs and tree-length loads. Or choose from a variety of Butt-N-Top grapple options to match your needs perfectly.


Upper Structure

Processors

Link-Belt Forestry swing machines are designed to be configured as high-capacity timber processors with your choice of harvesting heads. Choose high-wide or high-narrow undercarriage, single-bar or three-bar grouser shoes to match your application perfectly.
