3740 PH Link-Belt excavator specs & Dimensions (2019 - 2026)

Link-Belt 3740 PH is a crawler excavator manufactured since 2019. It has a weight of 35.8 tons and a track width of 700 mm. The tr…

Link-Belt 3740 PH is a crawler excavator manufactured since 2019. It has a weight of 35.8 tons and a track width of 700 mm. The transport dimensions are 9.87 meters in length, 3.59 meters in width, and 3.77 meters in height. The dredging depth is 4.12 meters, and the maximum horizontal reach is 8.75 meters.

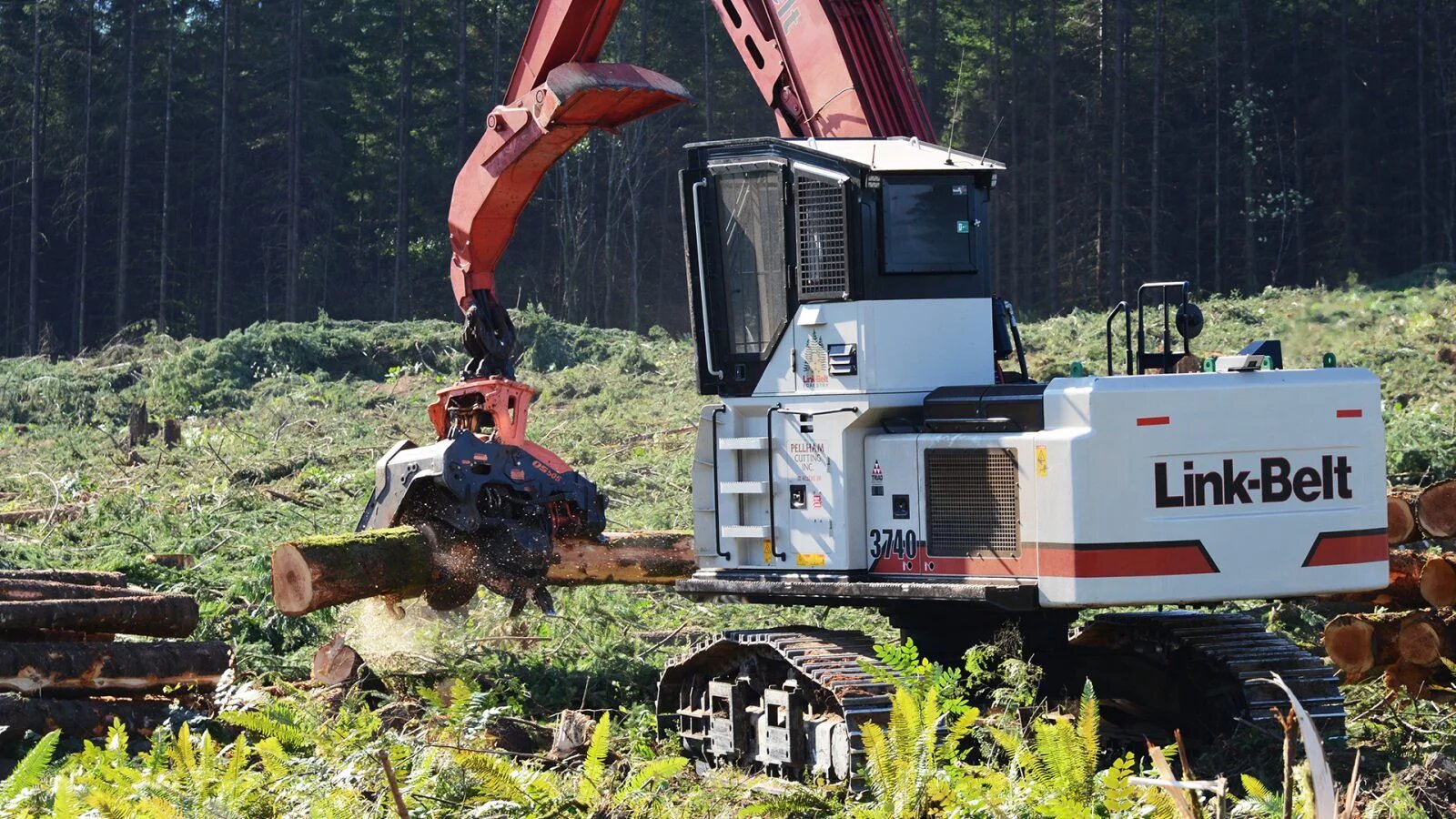

Crawler Excavators Link-Belt 3740 PH
Crawler Excavators Link-Belt 3740 PH
Crawler Excavators Link-Belt 3740 PH
Crawler Excavators Link-Belt 3740 PH
Crawler Excavators Link-Belt 3740 PH
Crawler Excavators Link-Belt 3740 PH

Technical specs - 3740 PH Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.8 t
Transport length
9.87 m
Transport width
3.59 m
Transport height
3.77 m
Track width
700 mm
Max. Reach horizontal
8.75 m
Dredging depth
4.12 m
Model series
3740
Engine manuf.
Isuzu
Engine type
AQ-4HK1X
Engine power
132 kW
Displacement
5.2 l
Revolutions at max torque
1800 rpm
Max. torque
621 Nm
No. of cylinders
4
Emission level
Tier 4f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 3740 PH FAQ

When was the Link-Belt 3740 PH manufactured?

The Link-Belt 3740 PH was first produced in 2019.

How much does the Link-Belt 3740 PH weigh?

The Link-Belt 3740 PH weighs 35.8 tons.

What are the transport dimensions of the Link-Belt 3740 PH crawler excavator?

The Link-Belt 3740 PH crawler excavator has a transport length of 9.87 meters, a transport width of 3.59 meters, and a transport height of 3.77 meters.

What is the track width of the Link-Belt 3740 PH's undercarriage?

The Link-Belt 3740 PH has a track width of 700 mm.

What are the excavation performance specifications of the Link-Belt 3740 PH?

The Link-Belt 3740 PH has a dredging depth of 4.12 meters and a maximum horizontal reach of 8.75 meters.
