350 X4 Link-Belt excavator specs & Dimensions (2019 - 2026)

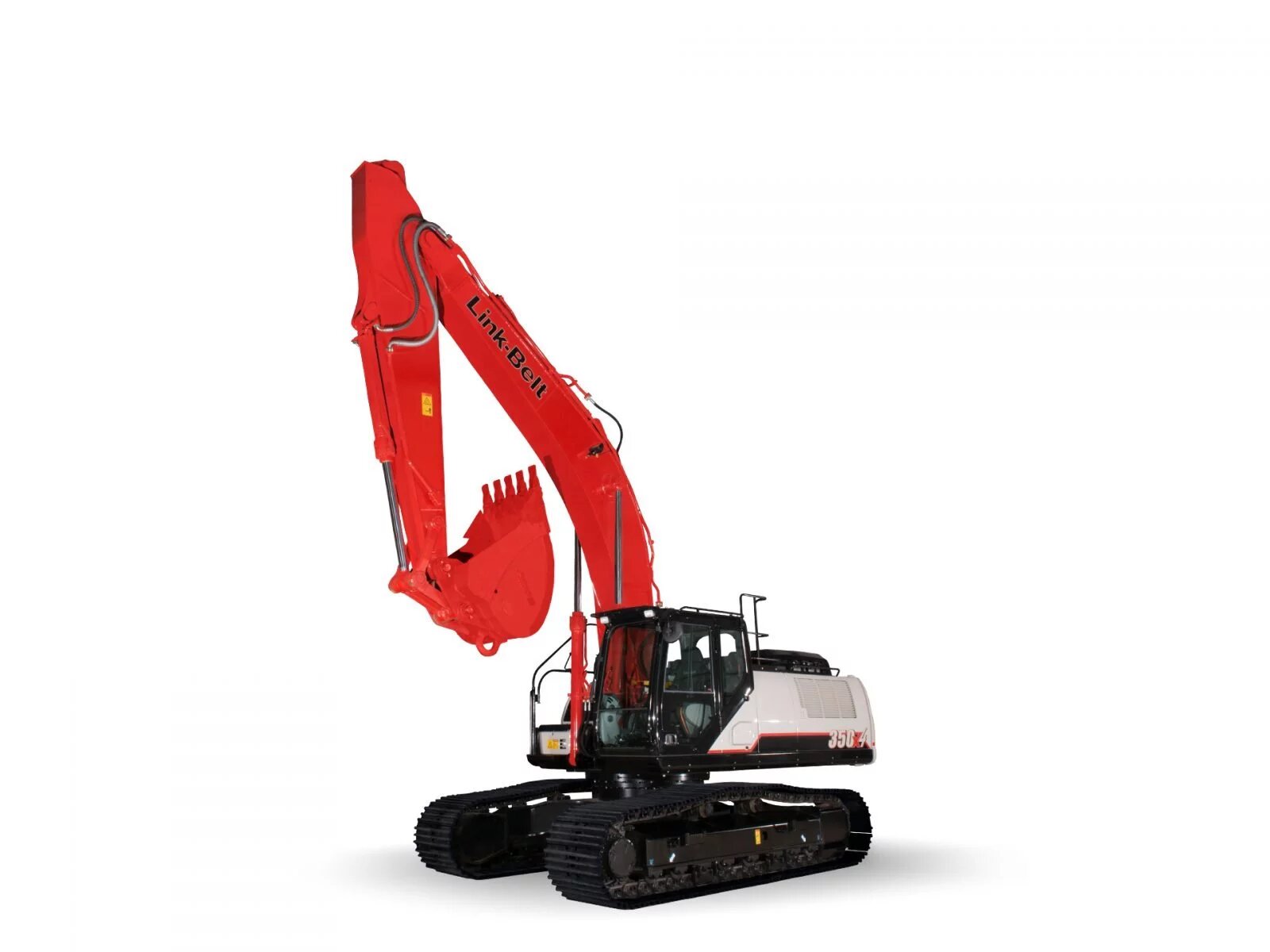

Link-Belt 350 X4 is a Crawler Excavator manufactured since 2019. It has a weight of 37.4 tons and a track width of 800 mm. The tra…

Link-Belt 350 X4 is a Crawler Excavator manufactured since 2019. It has a weight of 37.4 tons and a track width of 800 mm. The transport dimensions are 11.17 meters in length, 3.59 meters in width, and 3.47 meters in height. The excavator features a tear-out force of 250 kN, a dredging depth of 7.34 meters, and a maximum horizontal reach of 11.71 meters. The bucket capacity ranges from a minimum of 0.83 cubic meters to a maximum of 2.24 cubic meters.

Crawler Excavators Link-Belt 350 X4

Technical specs - 350 X4 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
37.4 t
Transport length
11.17 m
Transport width
3.59 m
Transport height
3.47 m
Bucket capacity
2.24 m³
Bucket capacity min.
0.83 m³
Bucket capacity max.
2.24 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
11.71 m
Dredging depth
7.34 m
Tear-out force
250 kN
Model series
X4
Engine manuf.
Isuzu
Engine type
AQ-6HK1X
Engine power
200 kW
Displacement
7.8 l
Revolutions at max torque
1500 rpm
Max. torque
988 Nm
No. of cylinders
6
Emission level
Tier 4f

More technical details, like: bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 350 X4 FAQ

When was the Link-Belt 350 X4 manufactured?

The Link-Belt 350 X4 was first produced in 2019.

How much does the Link-Belt 350 X4 weigh?

The Link-Belt 350 X4 weighs 37.4 tons.

What are the transport dimensions of the Link-Belt 350 X4 crawler excavator?

The Link-Belt 350 X4 has a transport length of 11.17 meters, a transport width of 3.59 meters, and a transport height of 3.47 meters.

What are the undercarriage specifications of the Link-Belt 350 X4?

The Link-Belt 350 X4 has a long undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Link-Belt 350 X4 crawler excavator?

The Link-Belt 350 X4 crawler excavator has a dredging depth of 7.34 meters, a maximum horizontal reach of 11.71 meters, and is equipped with a Monobloc boom.

What is the power rating of the Link-Belt 350 X4?

The power rating of the Link-Belt 350 X4 is not provided in the available data.

What are the bucket capacity specifications of the Link-Belt 350 X4 excavator?

The Link-Belt 350 X4 excavator has a bucket capacity of 2.24 cubic meters, with a maximum bucket capacity of 2.24 cubic meters and a minimum bucket capacity of 0.83 cubic meters.

How much is a Link-Belt 350 X4 Crawler excavator (2019u20132025) worth?

The residual value of the Link-Belt 350 X4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
