3240 PH Link-Belt excavator specs & Dimensions (2019 - 2026)

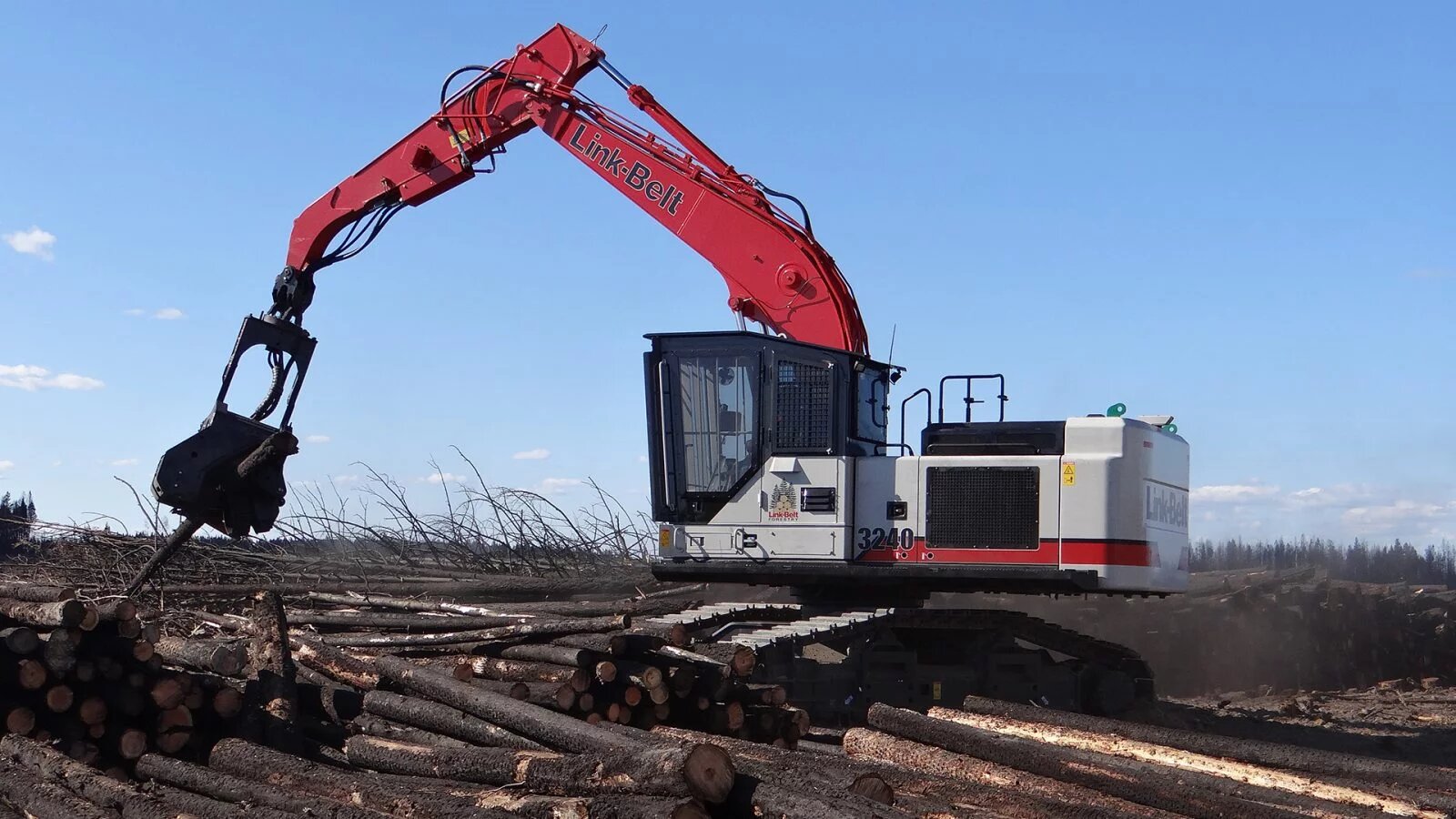

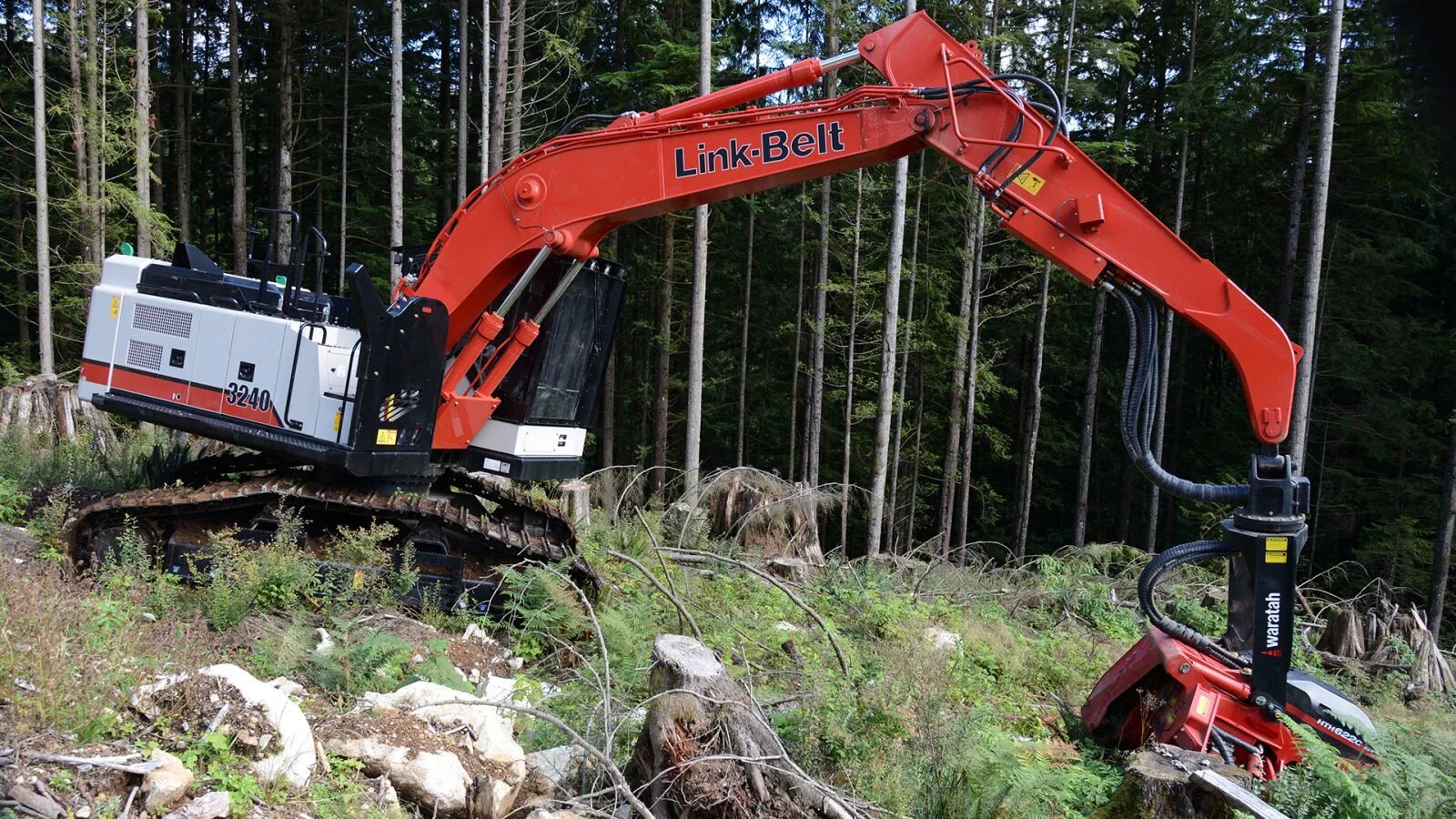

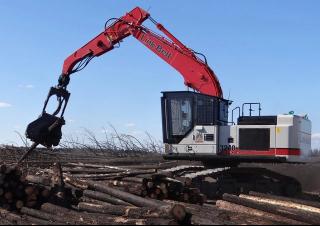

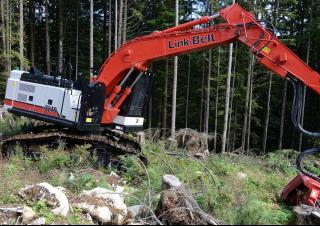

Link-Belt 3240 PH is a crawler excavator manufactured since 2019, with a weight of 35.13 tons. It features a track width of 700 mm…

Link-Belt 3240 PH is a crawler excavator manufactured since 2019, with a weight of 35.13 tons. It features a track width of 700 mm, a transport length of 9.58 meters, a transport width of 3.5 meters, and a transport height of 3.81 meters. The machine has a dredging depth of 4.12 meters and a maximum horizontal reach of 8.53 meters.

3240 PH

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 3240 PH Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 35.13 t

Transport length: 9.58 m

Transport width: 3.5 m

Transport height: 3.81 m

Track width: 700 mm

Max. Reach horizontal: 8.53 m

Dredging depth: 4.12 m

Model series: 3240

Engine manuf.: Isuzu

Engine type: AR-4HK1X

Engine power: 119.3 kW

Displacement: 5.2 l

Revolutions at max torque: 1600 rpm

Max. torque: 620 Nm

No. of cylinders: 4

Emission level: Tier 4f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: No
Cabin adjustment: No
Overload alert: No
Material Handling Excavator: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

3240 PH Link-Belt Specification for North America (EN)

Link-Belt 3240 PH FAQ

When was the Link-Belt 3240 PH manufactured?

The Link-Belt 3240 PH was first produced in 2019.

How much does the Link-Belt 3240 PH weigh?

The Link-Belt 3240 PH weighs 35.13 tons.

What are the transport dimensions of the Link-Belt 3240 PH crawler excavator?

The Link-Belt 3240 PH crawler excavator has a transport length of 9.58 meters, a transport width of 3.5 meters, and a transport height of 3.81 meters.

What is the track width of the Link-Belt 3240 PH crawler excavator?

The Link-Belt 3240 PH crawler excavator has a track width of 700 mm.

What are the dredging depth and maximum horizontal reach of the Link-Belt 3240 PH?

The Link-Belt 3240 PH has a dredging depth of 4.12 meters and a maximum horizontal reach of 8.53 meters.

How much is a Link-Belt 3240 PH Crawler excavator (2019u20132025) worth?

The residual value of the Link-Belt 3240 PH depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
