300 X3E Link-Belt excavator specs & Dimensions (2023 - 2026)

Weight: 30t – Transport length: 10.45m – Transport width: 3.3m – Transport height: 3.09m – Track width: 700mm – Max. Reach horizon…

Weight: 30t – Transport length: 10.45m – Transport width: 3.3m – Transport height: 3.09m – Track width: 700mm – Max. Reach horizontal: 10.5m

Check out detailed specifications, information and technical data for Link-Belt 300 X3E excavator manufactured between 2023 - 2026. Get more in-depth insight with Link-Belt 300 X3E digger specifications. See information, like: Weight: 30t – Transport length: 10.45m – Transport width: 3.3m – Transport height: 3.09m – Track width: 700mm – Max. Reach horizontal: 10.5m and more.

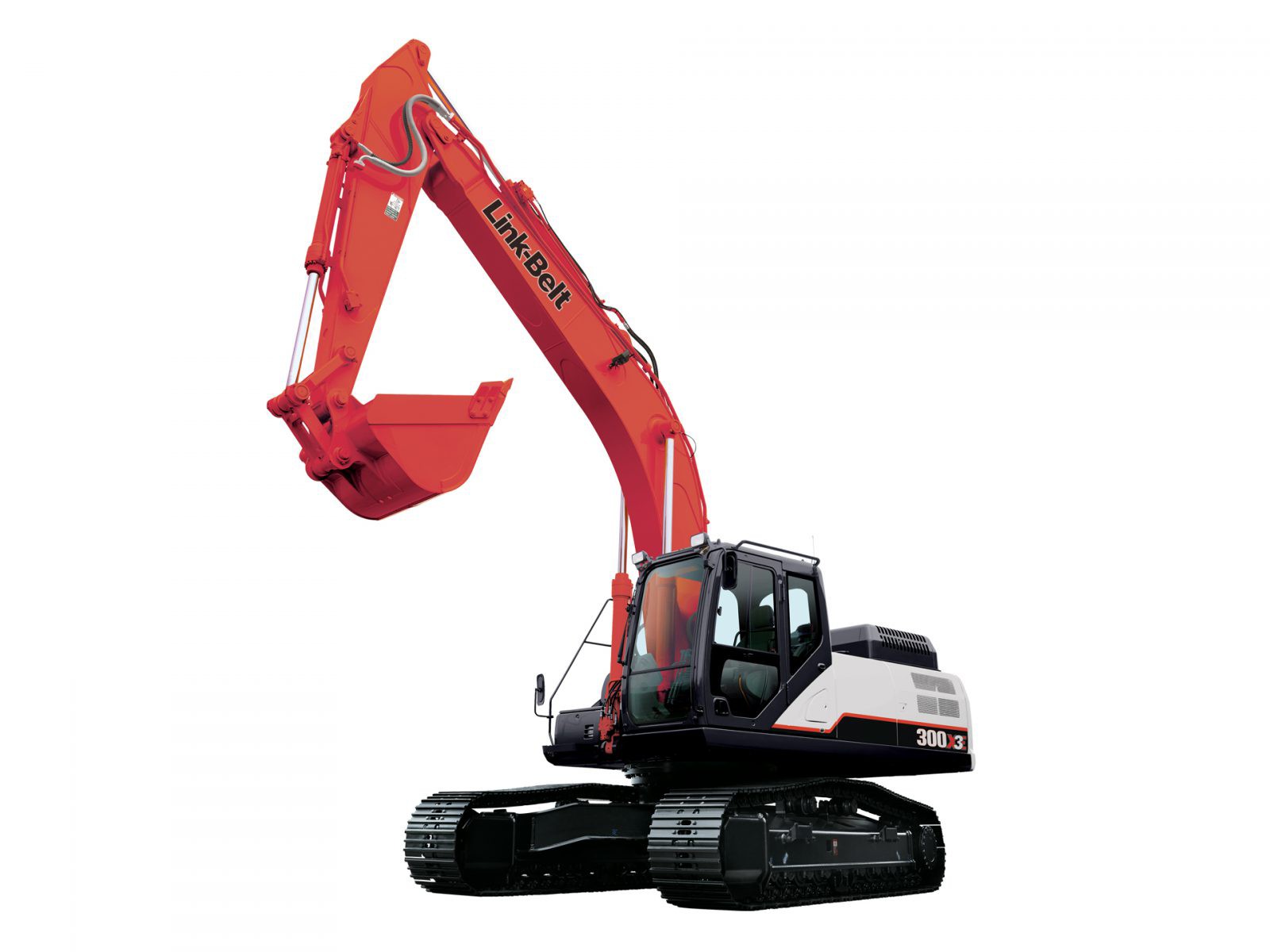

Crawler Excavators Link-Belt 300 X3E

Technical specs - 300 X3E Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30 t
Transport length
10.45 m
Transport width
3.3 m
Transport height
3.09 m
Track width
700 mm
Max. Reach horizontal
10.5 m
Dredging depth
7.1 m
Tear-out force
233 kN
Model series
X3
Engine manuf.
Isuzu
Engine type
GH-6HK1X
Engine power
202 kW
Displacement
7.8 l
Revolutions at max torque
1500 rpm
Max. torque
989 Nm
Cylinder bore x stroke
140 x 1369 mm
Emission level
Tier 3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 300 X3E FAQ

When was the Link-Belt 300 X3E manufactured?

The Link-Belt 300 X3E was first produced in 2023.

How much does the Link-Belt 300 X3E weigh?

The Link-Belt 300 X3E weighs 30 tons.

What are the transport dimensions of the Link-Belt 300 X3E crawler excavator?

The Link-Belt 300 X3E has a transport length of 10.45 meters, a transport width of 3.3 meters, and a transport height of 3.09 meters.

What is the track width of the Link-Belt 300 X3E crawler excavator?

The Link-Belt 300 X3E crawler excavator has a track width of 700 mm.

What are the excavation performance specifications of the Link-Belt 300 X3E?

The Link-Belt 300 X3E has a dredging depth of 7.1 meters and a maximum horizontal reach of 10.5 meters.

What is the tear-out force of the Link-Belt 300 X3E?

The Link-Belt 300 X3E has a tear-out force of 233 kN. The source data does not provide power rating information.
