290 LX Road Builder Link-Belt excavator specs & Dimensions (2002 - 2023)

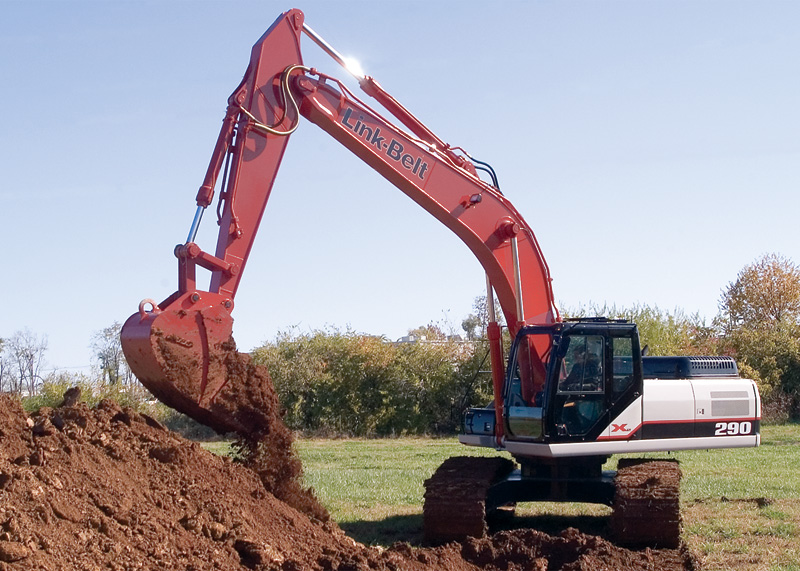

Link-Belt 290 LX Road Builder is a crawler excavator manufactured since 2002. It has a weight of 35.703 tons and a track width of …

Link-Belt 290 LX Road Builder is a crawler excavator manufactured since 2002. It has a weight of 35.703 tons and a track width of 700 mm. The transport dimensions are 10.036 meters in length, 3 meters in width, and 3 meters in height. The dredging depth is 6 meters, and the maximum horizontal reach is 10 meters. Special equipment includes air conditioning, a diesel particulate filter, and track adjustment.

Crawler Excavators Link-Belt 290 LX Road Builder

Technical specs - 290 LX Road Builder Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.7 t
Transport length
10.04 m
Transport width
3.64 m
Transport height
3.35 m
Undercarriage
LC
Track width
700 mm
Boom
MB
Max. Reach horizontal
10.75 m
Dredging depth
6.89 m
Engine manuf.
Isuzu
Engine type
CC-6BG1TC
Engine power
132 kW
Displacement
6.494 l
Revolutions at max torque
1800 rpm
Max. torque
600 Nm
No. of cylinders
6
Cylinder bore x stroke
105 x 125 mm
Emission level
Tier 2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., tear-out force, bucket width, model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 290 LX Road Builder FAQ

When was the Link-Belt 290 LX Road Builder manufactured?

The Link-Belt 290 LX Road Builder was manufactured from 2002 until 2023.

How much does the Link-Belt 290 LX Road Builder weigh?

The Link-Belt 290 LX Road Builder weighs 35.7 tons.

What are the transport dimensions of the Link-Belt 290 LX Road Builder?

The Link-Belt 290 LX Road Builder has a transport length of 10.04 meters, a transport width of 3.64 meters, and a transport height of 3.35 meters.

What are the undercarriage specifications of the Link-Belt 290 LX Road Builder?

The Link-Belt 290 LX Road Builder has a long undercarriage with a track width of 700 mm.

What are the excavation performance specifications of the Link-Belt 290 LX Road Builder?

The Link-Belt 290 LX Road Builder has a dredging depth of 6.89 meters, a maximum horizontal reach of 10.75 meters, and is equipped with a monobloc boom.
