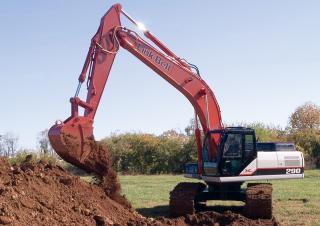

290 LX Link-Belt excavator specs & Dimensions (2003 - 2023)

Link-Belt 290 LX is a crawler excavator manufactured since 2003, with a weight of 29 tons. It features a track width of 800 mm, a …

Link-Belt 290 LX is a crawler excavator manufactured since 2003, with a weight of 29 tons. It features a track width of 800 mm, a transport length of 10 meters, a transport width of 3 meters, and a transport height of 3 meters. The bucket width is 1.676 meters, and the maximum bucket capacity is 1 cubic meter. Special equipment includes air conditioning, a diesel particulate filter, and track adjustment.

Crawler Excavators Link-Belt 290 LX

Technical specs - 290 LX Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29 t
Transport length
10 m
Transport width
3 m
Transport height
3 m
Bucket capacity max.
1 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
11.18 m
Dredging depth
7.59 m
Tear-out force
172.99 kN
Bucket width
1.676 m
Engine manuf.
Isuzu
Engine type
CC-6BG1TC
Engine power
132 kW
Displacement
6.494 l
Revolutions at max torque
1800 rpm
Max. torque
600 Nm
No. of cylinders
6
Cylinder bore x stroke
105 x 125 mm
Emission level
Tier 2

More technical details, like: bucket capacity, bucket capacity min., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 290 LX FAQ

When was the Link-Belt 290 LX manufactured?

The Link-Belt 290 LX was manufactured from 2003 to 2023.

How much does the Link-Belt 290 LX weigh?

The Link-Belt 290 LX weighs 29 tons.

What are the transport dimensions of the Link-Belt 290 LX crawler excavator?

The Link-Belt 290 LX crawler excavator has a transport length of 10 meters, a transport width of 3 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Link-Belt 290 LX?

The Link-Belt 290 LX has a long undercarriage and a track width of 800 mm.

What are the excavation performance specifications of the Link-Belt 290 LX?

The Link-Belt 290 LX has a dredging depth of 7.59 meters, a maximum horizontal reach of 11.18 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Link-Belt 290 LX?

The Link-Belt 290 LX has a tear-out force of 172.99 kN.

What are the specifications of the primary work tool on the Link-Belt 290 LX?

The primary work tool of the Link-Belt 290 LX has a maximum bucket capacity of 1 cubic meter and a bucket width of 1.676 meters.
