2800 Link-Belt excavator specs & Dimensions (1996 - 2023)

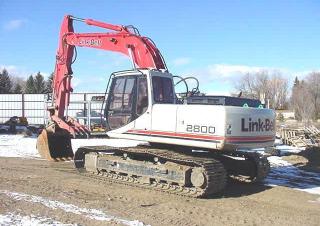

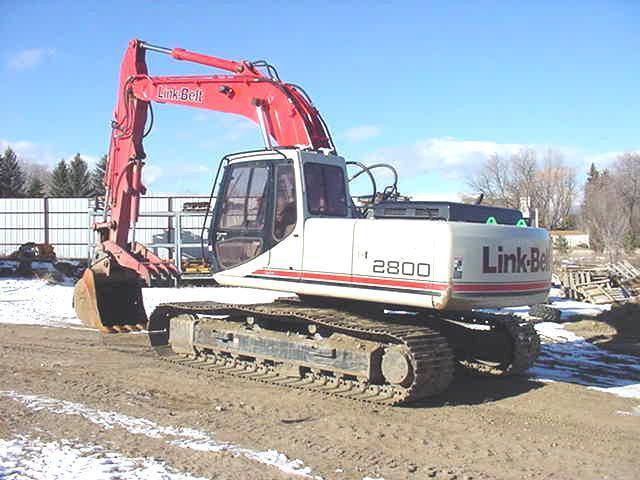

Link-Belt 2800 is a Crawler Excavator manufactured since 1996, with a weight of 20.237 tons. It features a track width of 800 mm, …

Link-Belt 2800 is a Crawler Excavator manufactured since 1996, with a weight of 20.237 tons. It features a track width of 800 mm, a transport length of 9 meters, a transport width of 3 meters, and a transport height of 3 meters. The bucket width is 1.219 meters, and the maximum bucket capacity is 1 cubic meter. Special equipment includes a diesel particulate filter and track adjustment.

Crawler Excavators Link-Belt 2800

Technical specs - 2800 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.237 t
Transport length
9 m
Transport width
3 m
Transport height
3 m
Bucket capacity max.
1 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
9.95 m
Dredging depth
6.69 m
Tear-out force
124.54 kN
Bucket width
1.219 m
Engine manuf.
Isuzu
Engine type
6BD1T
Engine power
95.5 kW
Displacement
5.785 l
Revolutions at max torque
1600 rpm
Max. torque
440 Nm
No. of cylinders
6
Cylinder bore x stroke
102 x 118 mm

More technical details, like: bucket capacity, bucket capacity min., model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 2800 FAQ

When was the Link-Belt 2800 manufactured?

The Link-Belt 2800 was manufactured from 1996 to 2023.

How much does the Link-Belt 2800 weigh?

The Link-Belt 2800 weighs 20.24 tons.

What are the transport dimensions of the Link-Belt 2800 crawler excavator?

The Link-Belt 2800 has a transport length of 9 meters, a transport width of 3 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Link-Belt 2800 crawler excavator?

The Link-Belt 2800 crawler excavator has a long undercarriage and a track width of 800 mm.

What are the excavation performance specifications of the Link-Belt 2800?

The Link-Belt 2800 has a dredging depth of 6.69 meters, a maximum horizontal reach of 9.95 meters, and is equipped with a monobloc boom.

What power ratings are available for the Link-Belt 2800?

The source data does not provide any power ratings for the Link-Belt 2800.

What are the specifications of the primary work tool bucket on the Link-Belt 2800?

The primary work tool bucket of the Link-Belt 2800 has a maximum capacity of 1 cubic meter and a width of 1.219 meters.

How much is a Link-Belt 2800 Crawler excavator (1996u20132023) worth?

The residual value of the Link-Belt 2800 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Link-Belt 2800 overview

Cab

Cab and Controls

Cab mounted on 6 fluid filled mountings. Features include a safety glass front window and LEXAN® MARGARD™ rear and side windows, reclining/sliding cloth upholstered suspension seat with headrest and armrests, heater, oscillating fan, AM/FM radio, cigarette lighter, pop-up skylight window, and intermittent wiper with washer. Front window slides upward for storage and the lower front window is removable. Control levers are located in 4-position tilting consoles. Reliable soft-touch switches. Easy-to-read illuminated LCD service monitor keeps operator in touch with critical machine functions.
