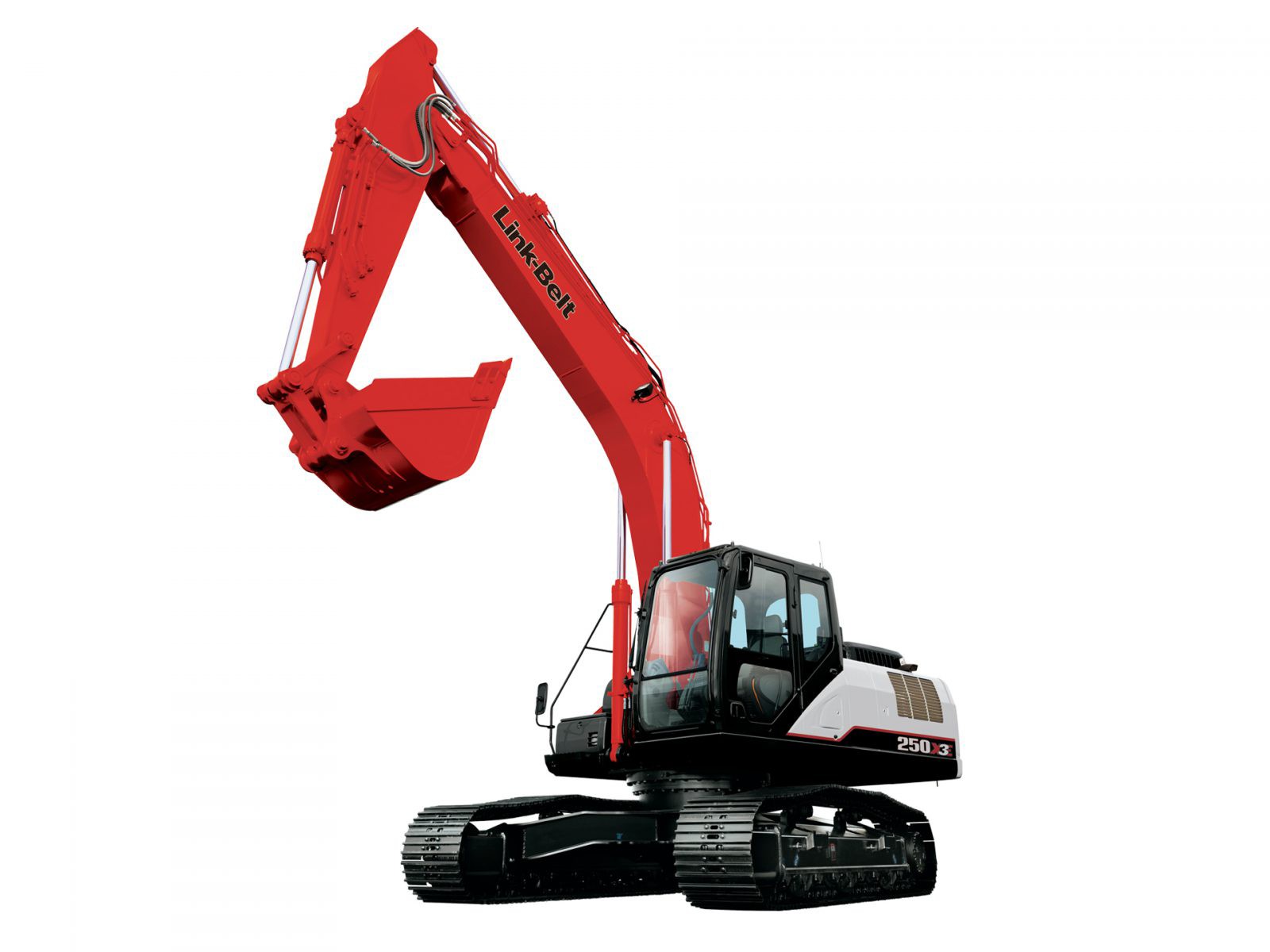

250 X3 Long Front Link-Belt excavator specs & Dimensions (2011 - 2023)

Link-Belt 250 X3 Long Front is a crawler excavator manufactured since 2011. It has a weight of 28 tons and a track width of 800 mm…

Link-Belt 250 X3 Long Front is a crawler excavator manufactured since 2011. It has a weight of 28 tons and a track width of 800 mm. The transport dimensions are 14 meters in length, 3 meters in width, and 3 meters in height. The machine features a tear-out force of 83 kN and a bucket width of 1.524 meters. Special equipment includes air conditioning, a diesel particulate filter, and track adjustment.

Crawler Excavators Link-Belt 250 X3 Long Front

Technical specs - 250 X3 Long Front Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
28 t
Transport length
14 m
Transport width
3 m
Transport height
3 m
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
18.32 m
Dredging depth
14.56 m
Tear-out force
83 kN
Bucket width
1.524 m
Engine manuf.
Isuzu
Engine type
AL-4HK1X
Engine power
132 kW
Displacement
5.2 l
Revolutions at max torque
1800 rpm
Max. torque
621 Nm
No. of cylinders
4
Emission level
Tier 4A

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 250 X3 Long Front FAQ

When was the Link-Belt 250 X3 Long Front manufactured?

The Link-Belt 250 X3 Long Front was manufactured from 2011 to 2023.

How much does the Link-Belt 250 X3 Long Front weigh?

The Link-Belt 250 X3 Long Front weighs 28 tons.

What are the transport dimensions of the Link-Belt 250 X3 Long Front?

The transport dimensions of the Link-Belt 250 X3 Long Front are 14 meters in length, 3 meters in width, and 3 meters in height.

What are the undercarriage specifications of the Link-Belt 250 X3 Long Front?

The Link-Belt 250 X3 Long Front has a long undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Link-Belt 250 X3 Long Front?

The Link-Belt 250 X3 Long Front has a dredging depth of 14.56 meters, a maximum horizontal reach of 18.32 meters, and features a Monobloc boom.

What is the tear-out force of the Link-Belt 250 X3 Long Front?

The Link-Belt 250 X3 Long Front has a tear-out force of 83 kN.

What is the bucket width of the Link-Belt 250 X3 Long Front excavator?

The bucket width of the Link-Belt 250 X3 Long Front excavator is 1.524 meters.

How much is a Link-Belt 250 X3 Long Front Crawler excavator (2011u20132023) worth?

The residual value of the Link-Belt 250 X3 Long Front depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
