145 X4 Spin Ace Link-Belt excavator specs & Dimensions (2019 - 2026)

Link-Belt 145 X4 Spin Ace is a crawler excavator manufactured since 2019. It has a weight of 15.2 tons and a track width of 600 mm…

Link-Belt 145 X4 Spin Ace is a crawler excavator manufactured since 2019. It has a weight of 15.2 tons and a track width of 600 mm. The transport dimensions are 7.35 meters in length, 2.59 meters in width, and 2.94 meters in height. The excavator features a tear-out force of 95 kN, a dredging depth of 6.01 meters, and a maximum horizontal reach of 8.6 meters. It is equipped with a bucket capacity of 0.75 cubic meters and includes special equipment such as a blade.

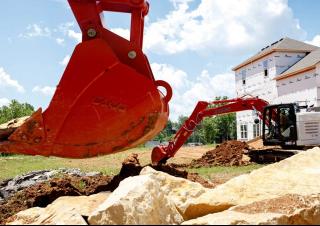

Crawler Excavators Link-Belt 145 X4 Spin Ace

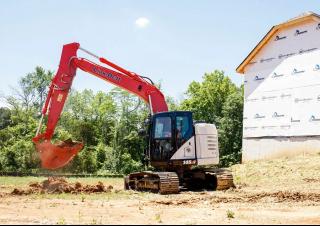

Crawler Excavators Link-Belt 145 X4 Spin Ace
Crawler Excavators Link-Belt 145 X4 Spin Ace
Crawler Excavators Link-Belt 145 X4 Spin Ace
Crawler Excavators Link-Belt 145 X4 Spin Ace
Crawler Excavators Link-Belt 145 X4 Spin Ace
Crawler Excavators Link-Belt 145 X4 Spin Ace
Crawler Excavators Link-Belt 145 X4 Spin Ace

Technical specs - 145 X4 Spin Ace Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.2 t
Transport length
7.35 m
Transport width
2.59 m
Transport height
2.94 m
Bucket capacity
0.75 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.6 m
Dredging depth
6.01 m
Tear-out force
95 kN
Model series
X4
Engine manuf.
Isuzu
Engine type
AR-4JJ1X
Engine power
76.4 kW
Displacement
2.99 l
Revolutions at max torque
1800 rpm
Max. torque
349 Nm
No. of cylinders
4
Cylinder bore x stroke
95.4 x 104.9 mm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 145 X4 Spin Ace FAQ

When was the Link-Belt 145 X4 Spin Ace manufactured?

The Link-Belt 145 X4 Spin Ace was first produced in 2019.

How much does the Link-Belt 145 X4 Spin Ace weigh?

The Link-Belt 145 X4 Spin Ace weighs 15.2 tons.

What are the transport dimensions of the Link-Belt 145 X4 Spin Ace crawler excavator?

The transport dimensions of the Link-Belt 145 X4 Spin Ace are 7.35 meters in length, 2.59 meters in width, and 2.94 meters in height.

What are the undercarriage specifications of the Link-Belt 145 X4 Spin Ace?

The Link-Belt 145 X4 Spin Ace has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Link-Belt 145 X4 Spin Ace?

The Link-Belt 145 X4 Spin Ace has a dredging depth of 6.01 meters, a maximum horizontal reach of 8.6 meters, and features a monobloc boom.

What is the tear-out force of the Link-Belt 145 X4 Spin Ace?

The Link-Belt 145 X4 Spin Ace has a tear-out force of 95 kN.

What is the bucket capacity of the Link-Belt 145 X4 Spin Ace excavator?

The bucket capacity of the Link-Belt 145 X4 Spin Ace is 0.75 cubic meters.

How much is a Link-Belt 145 X4 Spin Ace Crawler excavator (2019u20132025) worth?

The residual value of the Link-Belt 145 X4 Spin Ace depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Link-Belt 145 X4 Spin Ace overview

Engine

Performance, Productivity and Reliability Come Standard

Link-Belt 145 X4 Series excavators are built to exceed your expectations. We redesigned the control spools and incorporated spool stroke control (SSC) functions into the hydraulic system to reduce pressure loss and distribute hydraulic oil more smoothly, reducing cycle times by up to 3%. Expect more power and fuel efficiency, thanks to an innovative Final Tier 4 engine that delivers up to 6% improved fuel efficiency, without a Diesel Particulate Filter (DPF) to maintain or replace! Settle in to the roomiest, most accommodating cab in its class, with more legroom and a new high-back, heated seat for shift-long comfort. Daily maintenance is a snap, with ground-level access to all service points, easily opened by hand.


Hydraulic and electronic system

Hydraulic System

Open-center system, two variable-displacement electronically controlled axial piston pumps and one gear pump for pilot controls, main control valve with one 4-spool section and one 5-spool section with auxiliary spool stackable. Auxiliary Control System, oil cooler, Auto-Power boost, boom and arm anti-drift valves, 6 micron return filter, firewall, hydraulic oil sample port.


Hydraulics

HYDRAULICS Anti-Drift Valve (Arm & Boom) Arm Regeneration Arm Speed Assistance (E Pump Flow) Attachment Cushion Valve Auto Swing Priority Auxiliary Flow Control Auxiliary Tool Settings (Memory)


Undercarriage

Undercarriage

UNDERCARRIAGE 600 mm shoes (23.6 in) 3-Bar Steel Carbody Belly Pans (Swing Guard) Center Track Guide Sealed Link Chain Steps Stride Track Guides Work Lights (Boom and Tool Box)


Cab

Auxiliary Hydraulic Options

AUXILIARY HYDRAULIC OPTIONS Single Acting Aux w/ Pedal Activation Combination Aux w/ Proportional Joysticks Combination Aux w/ Proportional Joysticks + Multifunction Aux w/ in-cab pressure setting control Thumb Aux w/ Proportional Joysticks Combination Aux w/ Proportional Joysticks + Multifunction Aux w/ in-cab pressure setting control Bucket Circuit Coupler Hydraulics Line
