130 X4 Link-Belt excavator specs & Dimensions (2019 - 2026)

Link-Belt 130 X4 is a crawler excavator manufactured since 2019. It has a weight of 13.2 tons and a track width of 600 mm. The tra…

Link-Belt 130 X4 is a crawler excavator manufactured since 2019. It has a weight of 13.2 tons and a track width of 600 mm. The transport dimensions are 7.65 meters in length, 2.59 meters in width, and 2.81 meters in height. The machine offers a tear-out force of 95 kN, a dredging depth of 5.55 meters, and a maximum horizontal reach of 8.17 meters. The bucket capacity is 0.75 cubic meters.

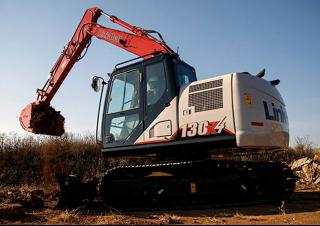

Crawler Excavators Link-Belt 130 X4
Crawler Excavators Link-Belt 130 X4
Crawler Excavators Link-Belt 130 X4
Crawler Excavators Link-Belt 130 X4
Crawler Excavators Link-Belt 130 X4
Crawler Excavators Link-Belt 130 X4

Technical specs - 130 X4 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.2 t
Transport length
7.65 m
Transport width
2.59 m
Transport height
2.81 m
Bucket capacity
0.75 m³
Undercarriage
LC/SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.17 m
Dredging depth
5.55 m
Tear-out force
95 kN
Model series
X4
Engine manuf.
Isuzu
Engine type
AR-4JJ1X
Engine power
76.4 kW
Displacement
2.99 l
Revolutions at max torque
1800 rpm
Max. torque
349 Nm
No. of cylinders
4
Cylinder bore x stroke
95.4 x 104.9 mm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 130 X4 FAQ

When was the Link-Belt 130 X4 manufactured?

The Link-Belt 130 X4 was first produced in 2019.

How much does the Link-Belt 130 X4 weigh?

The Link-Belt 130 X4 weighs 13.2 tons.

What are the transport dimensions of the Link-Belt 130 X4 crawler excavator?

The Link-Belt 130 X4 has a transport length of 7.65 meters, a transport width of 2.59 meters, and a transport height of 2.81 meters.

What are the undercarriage specifications of the Link-Belt 130 X4?

The Link-Belt 130 X4 has a long, standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Link-Belt 130 X4?

The Link-Belt 130 X4 has a dredging depth of 5.55 meters, a maximum horizontal reach of 8.17 meters, and has a Monobloc boom.

What power ratings are available for the Link-Belt 130 X4?

There are no power ratings available for the Link-Belt 130 X4 in the provided data.

What is the bucket capacity of the Link-Belt 130 X4 excavator?

The bucket capacity of the Link-Belt 130 X4 excavator is 0.75 cubic meters.

How much is a Link-Belt 130 X4 Crawler excavator (2019u20132025) worth?

The residual value of the Link-Belt 130 X4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
