R 976 Litronic Liebherr excavator specs & Dimensions (2021 - 2025)

Liebherr R 976 Litronic is a crawler excavator manufactured since 2021. It has a weight of 91.5 tons and a track width of 500 mm. …

Liebherr R 976 Litronic is a crawler excavator manufactured since 2021. It has a weight of 91.5 tons and a track width of 500 mm. The transport dimensions are 13.8 meters in length, 4.73 meters in width, and 5.1 meters in height. The dredging depth is 7.45 meters, with a maximum horizontal reach of 12.3 meters. The bucket width is 2.3 meters, with a capacity ranging from 4.2 to 6.8 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, and an overload alert system.

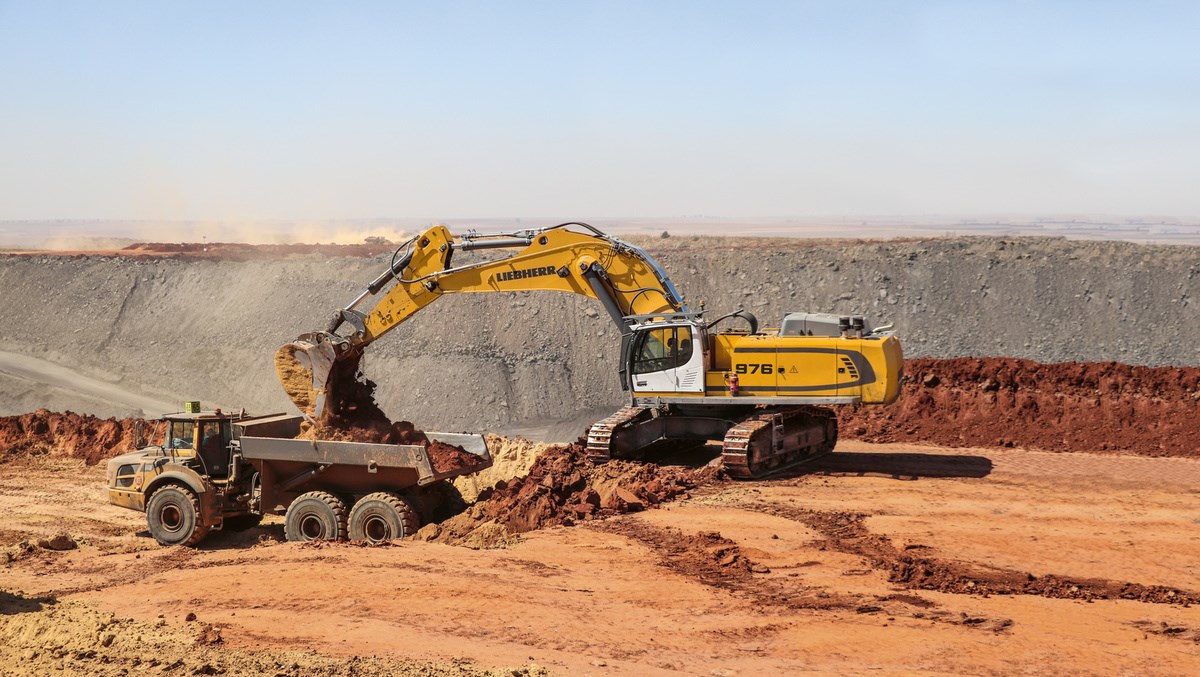

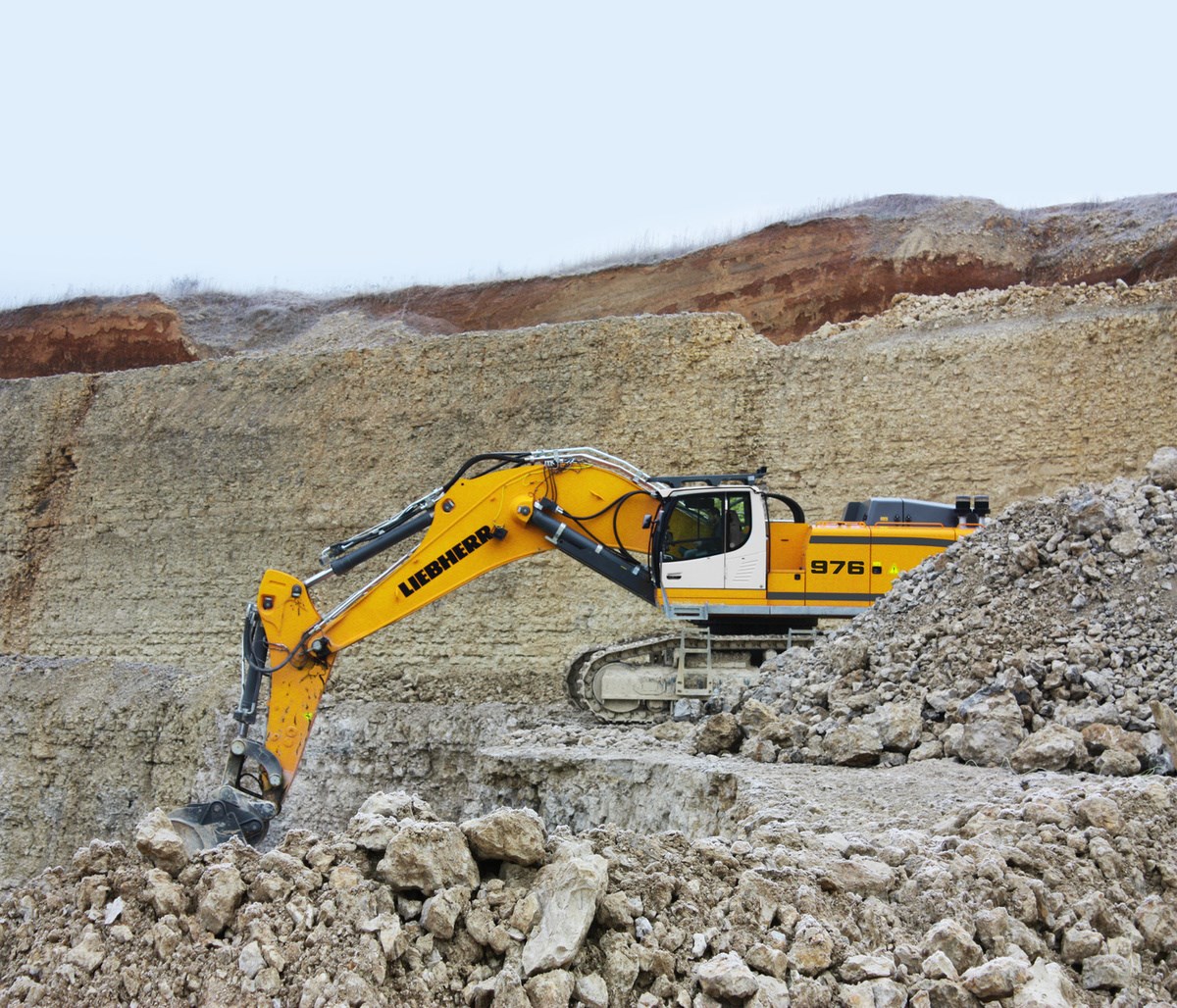

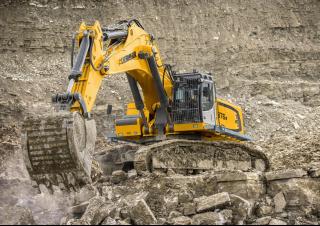

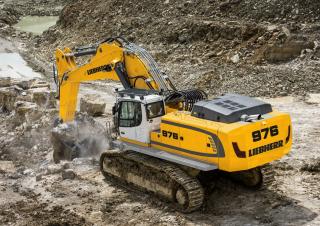

Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic

Visit Liebherr live at

Technical specs - R 976 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
91.5 t
Transport length
13.8 m
Transport width
4.73 m
Transport height
5.1 m
Bucket capacity
6.8 m³
Bucket capacity min.
4.2 m³
Bucket capacity max.
6.8 m³
Track width
500 mm
Max. Reach horizontal
12.3 m
Dredging depth
7.45 m
Bucket width
2.3 m
Model series
R
Engine manuf.
Liebherr
Engine type
D9508 A7 SCR
Engine power
400 kW
Displacement
16.16 l
Revolutions at max torque
1300 rpm
Max. torque
2939 Nm
No. of cylinders
8
Cylinder bore x stroke
128x157 mm
Emission level
Stage V

More technical details, like: undercarriage, boom, tear-out force, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 976 Litronic FAQ

When was the Liebherr R 976 Litronic manufactured?

The Liebherr R 976 Litronic was first produced in 2021.

How much does the Liebherr R 976 Litronic weigh?

The Liebherr R 976 Litronic weighs 91.5 tons.

What are the transport dimensions of the Liebherr R 976 Litronic?

The Liebherr R 976 Litronic has a transport length of 13.8 meters, a transport width of 4.73 meters, and a transport height of 5.1 meters.

What is the track width of the Liebherr R 976 Litronic's undercarriage?

The Liebherr R 976 Litronic has a track width of 500 mm.

What are the excavation performance specifications of the Liebherr R 976 Litronic?

The Liebherr R 976 Litronic has a dredging depth of 7.45 meters and a maximum horizontal reach of 12.3 meters.

What are the specifications of the bucket on the Liebherr R 976 Litronic crawler excavator?

The bucket of the Liebherr R 976 Litronic has a capacity ranging from 4.2 to 6.8 cubic meters and a width of 2.3 meters.

How much is a Liebherr R 976 Litronic Crawler excavator (2021u20132025) worth?

The residual value of the Liebherr R 976 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
