R 946 Liebherr excavator specs & Dimensions (2015 - 2019)

Liebherr R 946 is a crawler excavator manufactured from 2015 to 2019. It has a weight of 39.2 tons and a track width of 600 mm. Th…

Liebherr R 946 is a crawler excavator manufactured from 2015 to 2019. It has a weight of 39.2 tons and a track width of 600 mm. The transport dimensions are 11.35 meters in length, 2.39 meters in width, and 3.185 meters in height. The machine features a tear-out force of 201 kN and a dredging depth of 7 meters. The bucket width is 1.5 meters, with a bucket capacity of 1.75 cubic meters.

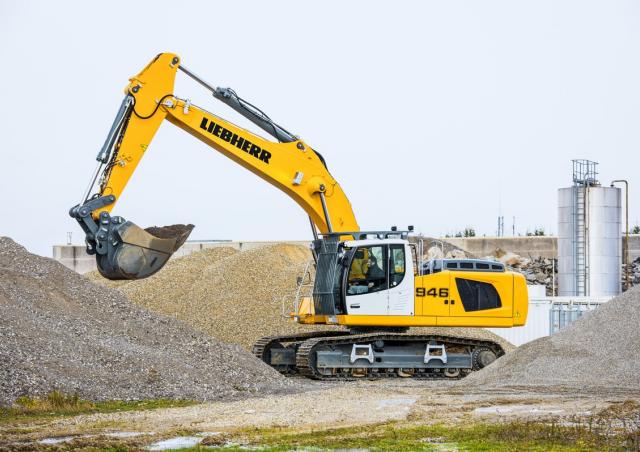

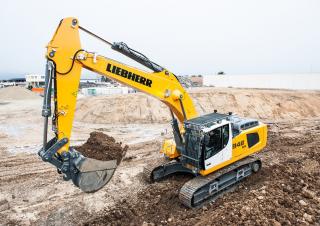

Crawler Excavators Liebherr R 946
Crawler Excavators Liebherr R 946
Crawler Excavators Liebherr R 946
Crawler Excavators Liebherr R 946

Visit Liebherr live at

Technical specs - R 946 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
39.2 t
Transport length
11.35 m
Transport width
2.39 m
Transport height
3.185 m
Bucket capacity
1.75 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.85 m
Dredging depth
7 m
Tear-out force
201 kN
Bucket width
1.5 m
Model series
R
Engine manuf.
Liebherr
Engine type
D 936 A 7
Engine power
220 kW
Displacement
10.52 l
Revolutions at max torque
1000 rpm
Max. torque
1967 Nm
No. of cylinders
6
Cylinder bore x stroke
122x150 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 946 FAQ

When was the Liebherr R 946 manufactured?

The Liebherr R 946 was manufactured from 2015 to 2019.

How much does the Liebherr R 946 weigh?

The Liebherr R 946 weighs 39.2 tons.

What are the transport dimensions of the Liebherr R 946 crawler excavator?

The Liebherr R 946 crawler excavator has a transport length of 11.35 meters, a transport width of 2.39 meters, and a transport height of 3.19 meters.

What are the undercarriage specifications of the Liebherr R 946?

The Liebherr R 946 has a Small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Liebherr R 946?

The Liebherr R 946 has a dredging depth of 7 meters, a maximum horizontal reach of 10.85 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Liebherr R 946?

The Liebherr R 946 has a tear-out force of 201 kN.

What are the specifications of the primary work tool on the Liebherr R 946?

The primary work tool of the Liebherr R 946 has a bucket capacity of 1.75 cubic meters and a bucket width of 1.5 meters.

How much is a Liebherr R 946 Crawler excavator (2015u20132019) worth?

The residual value of the Liebherr R 946 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
