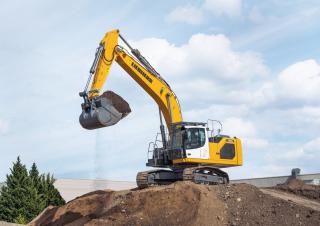

R 934 Litronic Liebherr excavator specs & Dimensions (2019 - 2026)

Liebherr R 934 Litronic is a Crawler Excavator manufactured since 2019, with a weight of 36.05 t and a track width of 600 mm. It h…

Liebherr R 934 Litronic is a Crawler Excavator manufactured since 2019, with a weight of 36.05 t and a track width of 600 mm. It has a transport length of 11.45 m, a transport width of 2.99 m, and a transport height of 3.15 m. The machine features a tear-out force of 223 kN, a dredging depth of 8.01 m, and a maximum horizontal reach of 12.17 m. The bucket capacity is 2.5 m³. Special equipment includes air conditioning, material handling capabilities, and an overload alert system.

Crawler Excavators Liebherr R 934 Litronic
Crawler Excavators Liebherr R 934 Litronic
Crawler Excavators Liebherr R 934 Litronic
Crawler Excavators Liebherr R 934 Litronic

Visit Liebherr live at

Technical specs - R 934 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.05 t
Transport length
11.45 m
Transport width
2.99 m
Transport height
3.15 m
Bucket capacity
2.5 m³
Undercarriage
LC/NLC
Track width
600 mm
Max. Reach horizontal
12.17 m
Dredging depth
8.01 m
Tear-out force
223 kN
Model series
R
Engine manuf.
Liebherr
Engine type
D944 A7-25
Engine power
200 kW
Displacement
8 l
Revolutions at max torque
1800 rpm
No. of cylinders
4
Cylinder bore x stroke
130x150 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 934 Litronic FAQ

When was the Liebherr R 934 Litronic manufactured?

The Liebherr R 934 Litronic was first produced in 2019.

How much does the Liebherr R 934 Litronic weigh?

The Liebherr R 934 Litronic weighs 36.05 tons.

What are the transport dimensions of the Liebherr R 934 Litronic?

The Liebherr R 934 Litronic has a transport length of 11.45 meters, a transport width of 2.99 meters, and a transport height of 3.15 meters.

What are the undercarriage specifications of the Liebherr R 934 Litronic?

The Liebherr R 934 Litronic has a long, small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Liebherr R 934 Litronic?

The Liebherr R 934 Litronic has a dredging depth of 8.01 meters and a maximum horizontal reach of 12.17 meters.

What is the tear-out force of the Liebherr R 934 Litronic?

The Liebherr R 934 Litronic has a tear-out force of 223 kN.

What is the bucket capacity of the Liebherr R 934 Litronic excavator?

The Liebherr R 934 Litronic excavator has a bucket capacity of 2.5 cubic meters.

How much is a Liebherr R 934 Litronic Crawler excavator (2019u20132025) worth?

The residual value of the Liebherr R 934 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Liebherr R 934 Litronic overview

Engine

Maintenance

Innovative servicing concept, with service points accessible from ground level Engine oil, hydraulic oil, fuel and urea (diesel exhaust fluid) levels visible on the display New concept for lateral access to uppercarriage and large maintenance platform


Engine

New engine that conforms with the Stage V European exhaust emissions standard Automatic engine idling/automatic engine shut-down after idling


Undercarriage

Undercarriage

Robust, reliable X-frame undercarriage, easy to secure thanks to its integrated eyelets. Easy maintenance. Maintenance-free track chains and track rollers with lifetime lubrication. Extra storage (option).


Cab

Safety

Panoramic visibility with no obstructions and camera on the rear and the right side for enhanced safety Tiltable console for easy and safe access to cab ROPS-certified cab structure Emergency exit via the rear cab window Right window and windshield in laminated and tinted glass


Comfort

Spacious, air-conditioned work space Airsprung seat with vertical and longitudinal suspension Easy-to-use high resolution 7” colour touchscreen Completely retractable front cab window New LED lighting as standard
