R 9300 G8 Liebherr excavator specs & Dimensions (2023 - 2026)

Weight: 253t – Transport length: 17.4m – Transport width: 7.59m – Transport height: 7.45m – Bucket capacity: 16.5m³ – Bucket capac…

Weight: 253t – Transport length: 17.4m – Transport width: 7.59m – Transport height: 7.45m – Bucket capacity: 16.5m³ – Bucket capacity min.: 16m³

Check out detailed specifications, information and technical data for Liebherr R 9300 G8 excavator manufactured between 2023 - 2026. Get more in-depth insight with Liebherr R 9300 G8 digger specifications. See information, like: Weight: 253t – Transport length: 17.4m – Transport width: 7.59m – Transport height: 7.45m – Bucket capacity: 16.5m³ – Bucket capacity min.: 16m³ and more.

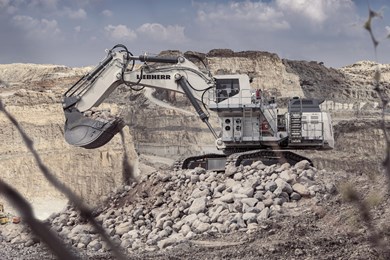

Crawler Excavators Liebherr R 9300 G8

Visit Liebherr live at

Technical specs - R 9300 G8 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
253 t
Transport length
17.4 m
Transport width
7.59 m
Transport height
7.45 m
Bucket capacity
16.5 m³
Bucket capacity min.
16 m³
Bucket capacity max.
16.5 m³
Track width
850 mm
Max. Reach horizontal
16 m
Dredging depth
8.2 m
Tear-out force
1265 kN
Bucket width
2.6 m
Model series
R
Engine manuf.
Cummins
Engine type
QSK38
Engine power
1007 kW
Displacement
37.8 l
Revolutions at max torque
1800 rpm
Cylinder bore x stroke
159x159 mm
Emission level
Stage V

More technical details, like: undercarriage, boom, dimension lxwxh, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 9300 G8 FAQ

When was the Liebherr R 9300 G8 manufactured?

The Liebherr R 9300 G8 was first produced in 2023.

How much does the Liebherr R 9300 G8 weigh?

The Liebherr R 9300 G8 weighs 253 tons.

What are the transport dimensions of the Liebherr R 9300 G8 crawler excavator?

The Liebherr R 9300 G8 has a transport length of 17.4 meters, a transport width of 7.59 meters, and a transport height of 7.45 meters.

What is the track width of the Liebherr R 9300 G8's undercarriage?

The Liebherr R 9300 G8 has a track width of 850 mm.

What are the excavation performance specifications of the Liebherr R 9300 G8?

The Liebherr R 9300 G8 has a dredging depth of 8.2 meters and a maximum horizontal reach of 16 meters.

What is the tear-out force of the Liebherr R 9300 G8?

The Liebherr R 9300 G8 has a tear-out force of 1265 kN.

What are the specifications of the primary work tool bucket on the Liebherr R 9300 G8?

The primary work tool bucket of the Liebherr R 9300 G8 has a capacity ranging from 16 to 16.5 cubic meters and a width of 2.6 meters.

How much is a Liebherr R 9300 G8 Crawler excavator (2023u20132025) worth?

The residual value of the Liebherr R 9300 G8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
