R 920 Litronic Liebherr excavator specs & Dimensions (2021 - 2026)

Liebherr R 920 Litronic is a Crawler Excavator manufactured since 2021. It has a weight of 21 tons and a track width of 600 mm. Th…

Liebherr R 920 Litronic is a Crawler Excavator manufactured since 2021. It has a weight of 21 tons and a track width of 600 mm. The transport dimensions are 9.75 m in length, 2.99 m in width, and 3.2 m in height. The machine features a tear-out force of 146 kN, a dredging depth of 5.75 m, and a maximum horizontal reach of 8.95 m. The bucket width is 1.25 m, with a capacity ranging from 0.6 m³ to 1.25 m³. Special equipment includes air conditioning, a diesel particulate filter, and an overload alert system.

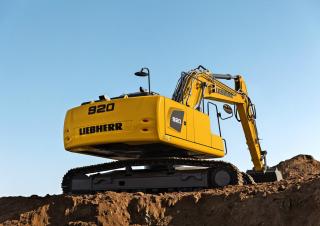

Crawler Excavators Liebherr R 920 Litronic
Crawler Excavators Liebherr R 920 Litronic
Crawler Excavators Liebherr R 920 Litronic
Crawler Excavators Liebherr R 920 Litronic
Crawler Excavators Liebherr R 920 Litronic
Crawler Excavators Liebherr R 920 Litronic

Visit Liebherr live at

Technical specs - R 920 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21 t
Transport length
9.75 m
Transport width
2.99 m
Transport height
3.2 m
Bucket capacity
1.25 m³
Bucket capacity min.
0.6 m³
Bucket capacity max.
1.25 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.95 m
Dredging depth
5.75 m
Tear-out force
146 kN
Bucket width
1.25 m
Model series
R
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
110 kW
Displacement
6.7 l
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
Stage IIIA / Tier 3

More technical details, like: undercarriage, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 920 Litronic FAQ

When was the Liebherr R 920 Litronic manufactured?

The Liebherr R 920 Litronic was first produced in 2021.

How much does the Liebherr R 920 Litronic weigh?

The Liebherr R 920 Litronic weighs 21 tons.

What are the transport dimensions of the Liebherr R 920 Litronic?

The Liebherr R 920 Litronic has a transport length of 9.75 meters, a transport width of 2.99 meters, and a transport height of 3.2 meters.

What is the track width of the Liebherr R 920 Litronic's undercarriage?

The Liebherr R 920 Litronic has a track width of 600 mm.

What are the excavation performance specifications of the Liebherr R 920 Litronic?

The Liebherr R 920 Litronic has a dredging depth of 5.75 meters, a maximum horizontal reach of 8.95 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Liebherr R 920 Litronic?

The Liebherr R 920 Litronic has a tear-out force of 146 kN.

What are the bucket specifications of the Liebherr R 920 Litronic excavator?

The Liebherr R 920 Litronic excavator has a bucket capacity ranging from 0.6 to 1.25 cubic meters, with a bucket width of 1.25 meters.
