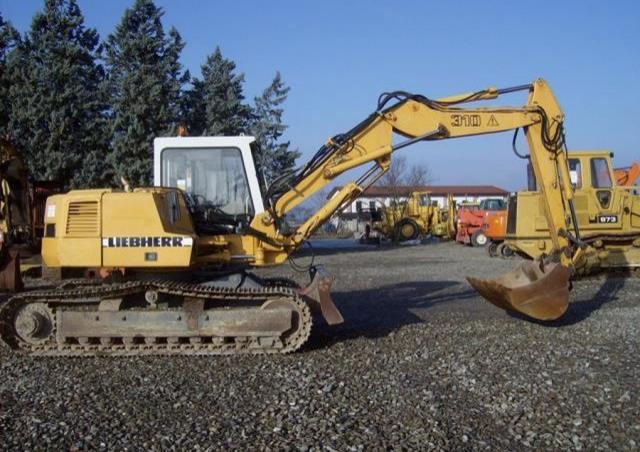

R 310B Liebherr excavator specs & Dimensions (1995 - 2020)

Liebherr R310B is a crawler excavator manufactured since 1995, with a weight of 14.8 tons. It features a track width of 900 mm, a …

Liebherr R310B is a crawler excavator manufactured since 1995, with a weight of 14.8 tons. It features a track width of 900 mm, a transport length of 4.35 meters, a transport width of 2.9 meters, and a transport height of 2.965 meters. The machine has a tear-out force of 65.7 kN, a dredging depth of 4.4 meters, and a maximum horizontal reach of 8.2 meters. The bucket width is 1 meter, and the bucket capacity is 0.46 cubic meters.

Crawler Excavators Liebherr R 310B

Visit Liebherr live at

Technical specs - R 310B Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.8 t
Transport length
4.35 m
Transport width
2.9 m
Transport height
2.965 m
Bucket capacity
0.46 m³
Track width
900 mm
Max. Reach horizontal
8.2 m
Dredging depth
4.4 m
Tear-out force
65.7 kN
Bucket width
1 m
Engine manuf.
Deutz
Engine type
N/A
Engine power
58 kW
Revolutions at max torque
2300 rpm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, model series, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 310B FAQ

When was the Liebherr R310B manufactured?

The Liebherr R310B was first produced in 1995.

How much does the Liebherr R310B weigh?

The Liebherr R310B weighs 14.8 tons.

What are the transport dimensions of the Liebherr R310B crawler excavator?

The Liebherr R310B crawler excavator has a transport length of 4.35 meters, a transport width of 2.9 meters, and a transport height of 2.97 meters.

What is the track width of the Liebherr R310B's undercarriage?

The Liebherr R310B has a track width of 900 mm.

What are the excavation performance specifications of the Liebherr R310B crawler excavator?

The Liebherr R310B crawler excavator has a dredging depth of 4.4 meters and a maximum horizontal reach of 8.2 meters.

What is the tear-out force of the Liebherr R310B?

The Liebherr R310B has a tear-out force of 65.7 kN.

What are the specifications of the bucket on the Liebherr R310B crawler excavator?

The bucket of the Liebherr R310B has a capacity of 0.46 cubic meters and a width of 1 meter.

How much is a Liebherr R310B Crawler excavator (1995u20132025) worth?

The residual value of the Liebherr R310B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
