PC240LC-11E0 Komatsu excavator specs & Dimensions (2021 - 2026)

Komatsu PC240LC-11E0 is a crawler excavator manufactured since 2021, with a weight of 25.3 tons. It features a track width of 600 …

Komatsu PC240LC-11E0 is a crawler excavator manufactured since 2021, with a weight of 25.3 tons. It features a track width of 600 mm, a transport length of 9.965 meters, a transport width of 3.18 meters, and a transport height of 3.185 meters. The machine has a dredging depth of 6.92 meters and a maximum horizontal reach of 10.02 meters. Its bucket capacity is up to 1.89 cubic meters. Special equipment includes a blade, a diesel particulate filter, and an overload alert system.

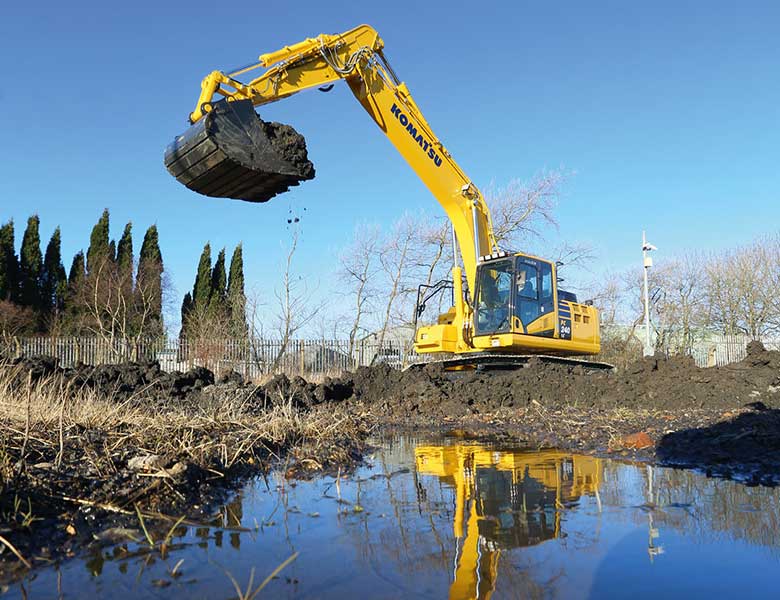

Crawler Excavators Komatsu PC240LC-11E0
Crawler Excavators Komatsu PC240LC-11E0
Crawler Excavators Komatsu PC240LC-11E0
Crawler Excavators Komatsu PC240LC-11E0
Crawler Excavators Komatsu PC240LC-11E0
Crawler Excavators Komatsu PC240LC-11E0
Crawler Excavators Komatsu PC240LC-11E0
Crawler Excavators Komatsu PC240LC-11E0

Visit Komatsu live at

Technical specs - PC240LC-11E0 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.3 t
Transport length
9.965 m
Transport width
3.18 m
Transport height
3.185 m
Bucket capacity
1.89 m³
Bucket capacity max.
1.89 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.02 m
Dredging depth
6.92 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D107E-3
Engine power
141 kW
Displacement
6.69 l
Revolutions at max torque
2000 rpm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
V

More technical details, like: bucket capacity min., tear-out force, bucket width, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC240LC-11E0 FAQ

When was the Komatsu PC240LC-11E0 manufactured?

The Komatsu PC240LC-11E0 was first produced in 2021.

How much does the Komatsu PC240LC-11E0 weigh?

The Komatsu PC240LC-11E0 weighs 25.3 tons.

What are the transport dimensions of the Komatsu PC240LC-11E0?

The Komatsu PC240LC-11E0 has a transport length of 9.97 meters, a transport width of 3.18 meters, and a transport height of 3.19 meters.

What are the undercarriage specifications of the Komatsu PC240LC-11E0?

The Komatsu PC240LC-11E0 has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Komatsu PC240LC-11E0?

The Komatsu PC240LC-11E0 has a dredging depth of 6.92 meters, a maximum horizontal reach of 10.02 meters, and features a monobloc boom.

What is the bucket capacity of the Komatsu PC240LC-11E0 excavator?

The Komatsu PC240LC-11E0 excavator has a bucket capacity of 1.89 cubic meters.

How much is a Komatsu PC240LC-11E0 Crawler excavator (2021u20132025) worth?

The residual value of the Komatsu PC240LC-11E0 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
