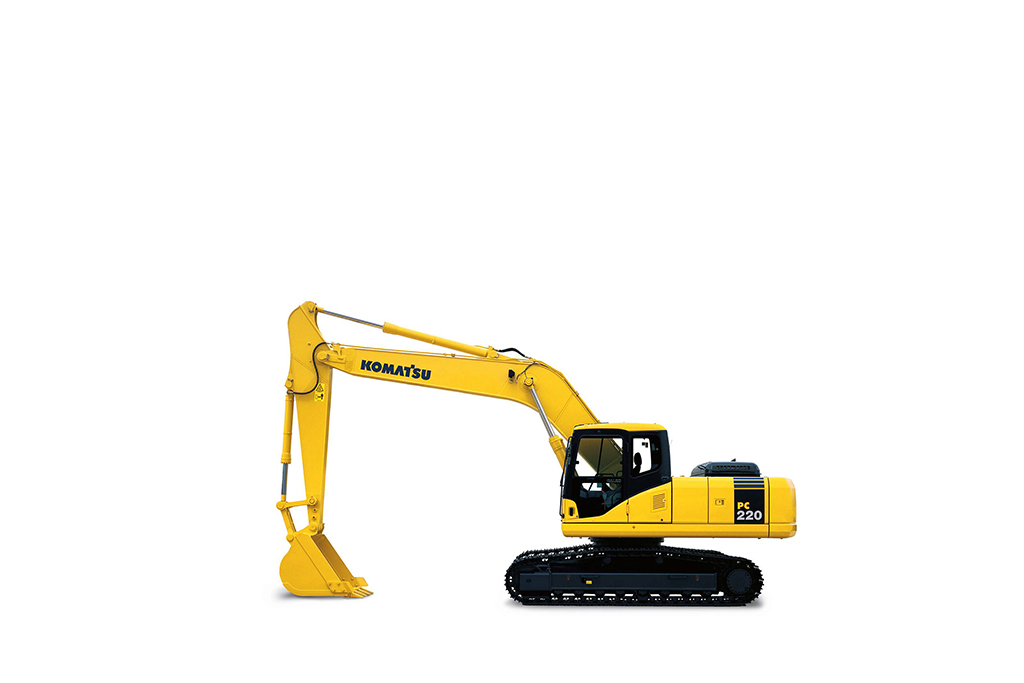

PC220LC-7 Komatsu excavator specs & Dimensions (2008 - 2015)

Komatsu PC220LC-7 is a crawler excavator manufactured from 2008 to 2015. It has a weight of 24.55 tons and a track width of 700 mm…

Komatsu PC220LC-7 is a crawler excavator manufactured from 2008 to 2015. It has a weight of 24.55 tons and a track width of 700 mm. The transport dimensions are 9.885 meters in length, 3.28 meters in width, and 3.015 meters in height. The machine features a tear-out force of 172 kN, a dredging depth of 6.92 meters, and a maximum horizontal reach of 10.02 meters. The bucket width is 1.505 meters, with a capacity of 1.26 cubic meters.

Crawler Excavators Komatsu PC220LC-7

Visit Komatsu live at

Technical specs - PC220LC-7 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.55 t
Transport length
9.885 m
Transport width
3.28 m
Transport height
3.015 m
Bucket capacity
1.26 m³
Undercarriage
LC
Track width
700 mm
Boom
MB
Max. Reach horizontal
10.02 m
Dredging depth
6.92 m
Tear-out force
172 kN
Bucket width
1.505 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D102E-2
Engine power
125 kW
Displacement
5.88 l
Revolutions at max torque
2000 rpm
No. of cylinders
6
Cylinder bore x stroke
102x120 mm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC220LC-7 FAQ

When was the Komatsu PC220LC-7 manufactured?

The Komatsu PC220LC-7 was manufactured from 2008 to 2015.

How much does the Komatsu PC220LC-7 weigh?

The Komatsu PC220LC-7 weighs 24.55 tons.

What are the transport dimensions of the Komatsu PC220LC-7?

The Komatsu PC220LC-7 has a transport length of 9.89 meters, a transport width of 3.28 meters, and a transport height of 3.02 meters.

What are the undercarriage specifications of the Komatsu PC220LC-7?

The Komatsu PC220LC-7 has a long undercarriage and a track width of 700 mm.

What are the excavation performance specifications of the Komatsu PC220LC-7?

The Komatsu PC220LC-7 has a dredging depth of 6.92 meters, a maximum horizontal reach of 10.02 meters, and is equipped with a Monobloc boom.

What is the tear-out force of the Komatsu PC220LC-7?

The Komatsu PC220LC-7 has a tear-out force of 172 kN.

What are the bucket specifications of the Komatsu PC220LC-7 excavator?

The Komatsu PC220LC-7 has a bucket capacity of 1.26 cubic meters and a bucket width of 1.505 meters.

How much is a Komatsu PC220LC-7 Crawler excavator (2008u20132015) worth?

The residual value of the Komatsu PC220LC-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
