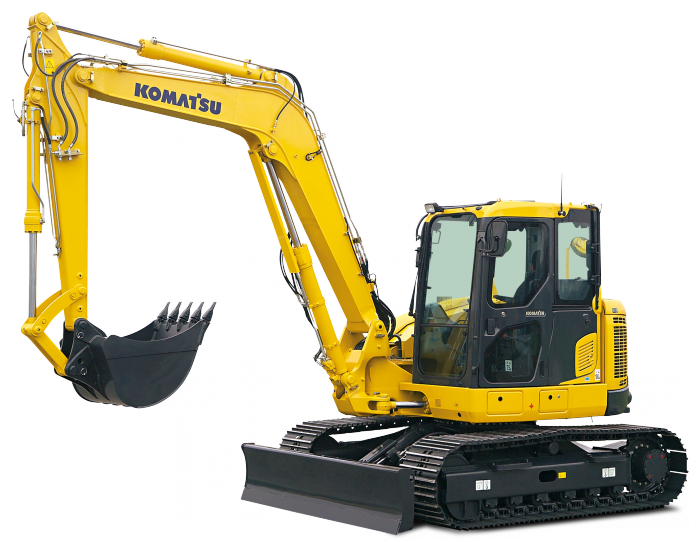

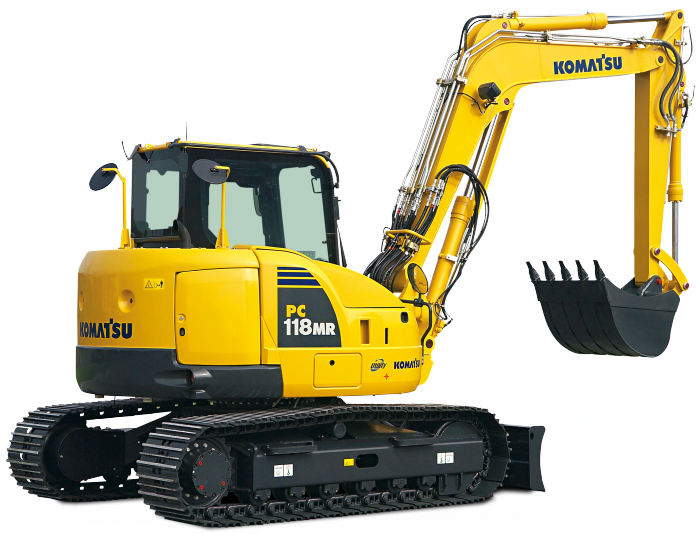

PC118MR-8 Komatsu excavator specs & Dimensions (2012 - 2017)

Model rating
9,00 / 10

Komatsu PC118MR-8 is a Crawler Excavator manufactured from 2012 to 2017, with a weight of 11.89 tons. It features a track width of…

Komatsu PC118MR-8 is a Crawler Excavator manufactured from 2012 to 2017, with a weight of 11.89 tons. It features a track width of 500 mm, a transport length of 6.696 meters, a transport width of 2.4 meters, and a transport height of 2.845 meters. The machine has a dredging depth of 4.45 meters and a maximum horizontal reach of 7.285 meters. The bucket width is 1 meter. Special equipment includes air conditioning, a blade, and an overload alert system.

Crawler Excavators Komatsu PC118MR-8
Crawler Excavators Komatsu PC118MR-8
Crawler Excavators Komatsu PC118MR-8
Crawler Excavators Komatsu PC118MR-8

Visit Komatsu live at

Technical specs - PC118MR-8 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.89 t
Transport length
6.696 m
Transport width
2.4 m
Transport height
2.845 m
Bucket capacity
0.4 m³
Track width
500 mm
Boom
MB
Max. Reach horizontal
7.285 m
Dredging depth
4.45 m
Bucket width
1 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA4D95LE-5
Engine power
72 kW
Displacement
3.26 l
Revolutions at max torque
1500 rpm
Max. torque
358 Nm
Cylinder bore x stroke
95 x 115 mm
Emission level
Stage IIIA

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, tear-out force, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC118MR-8 FAQ

When was the Komatsu PC118MR-8 manufactured?

The Komatsu PC118MR-8 was manufactured from 2012 to 2017.

How much does the Komatsu PC118MR-8 weigh?

The Komatsu PC118MR-8 weighs 11.89 tons.

What are the transport dimensions of the Komatsu PC118MR-8?

The Komatsu PC118MR-8 has a transport length of 6.7 meters, a transport width of 2.4 meters, and a transport height of 2.85 meters.

What is the track width of the Komatsu PC118MR-8's undercarriage?

The Komatsu PC118MR-8 has a track width of 500 mm.

What are the excavation performance specifications of the Komatsu PC118MR-8?

The Komatsu PC118MR-8 has a dredging depth of 4.45 meters, a maximum horizontal reach of 7.285 meters, and is equipped with a monobloc boom.

What are the bucket specifications of the Komatsu PC118MR-8 excavator?

The Komatsu PC118MR-8 has a bucket capacity of 0.4 cubic meters and a bucket width of 1 meter.

How much is a Komatsu PC118MR-8 Crawler excavator (2012u20132017) worth?

The residual value of the Komatsu PC118MR-8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Komatsu PC118MR-8 overview

Komatsu PC118MR-8 features overview

Performance and controllability

The PC118MR-8 offers outstanding performances coupled with excellent controllability for even the toughest job. It has a powerful swing force, can efficiently work on slopes, and it delivers exceptional drawbar pull. In conjunction with automatic down shift, this machine is ideal on any terrain or for any application. The Closed Load Sensing System (CLSS) ensures unbeatable speed and control to all combined movements, no matter the load.


Engine

Performance and ecology

The PC118MR-8 is fitted with an ecot3 engine that meets EU Stage IIIA regulations. Together with an advanced hydraulic system, this electronically controlled common-rail engine with multi stage injection achieves a superior level of productivity. Drastically reduced NOx emissions and noise levels make this compact excavator perfect for confined areas and urban jobsites.


High productivity and fuel saving

Depending on the load, operators can conveniently choose between 5 working modes designed to match engine speed, pump delivery and system pressure. Priority can be given either to speed, for more productivity, or to fuel consumption for lighter applications. Fuel efficiency is further improved with the auto-deceleration, a standard feature that automatically slows down engine speed when levers are in neutral position, and with the eco-gauge, visible on the LCD monitor.


Hydraulic and electronic system

Maximum flexibility

Thanks to auxiliary hydraulic lines, the PC118MR-8 can use a wide range of attachments. For breaking, crushing and all other applications, the optimal oil flow from the hydraulic pump can be selected directly on the LCD monitor. On the joystick, proportional controls for auxiliary circuits guarantee precision work with any tool.


Excellent serviceability

Komatsu designed the PC118MR-8 with an easy access to all service points. Routine maintenance and servicing are less likely to be skipped, which can mean a reduction of costly downtime later on. The radiator, aftercooler and oil cooler are made of aluminium to improve their efficiency and are mounted in parallel for quicker cleaning. The fuel and oil filters as well as the fuel drain valve, are all remote mounted and easily accessible.


EMMS (Equipment Management and Monitoring System)

Komatsu’s EMMS can prevent a small problem from becoming a major service issue. The controller monitors all critical systems and key engine features such as engine oil pressure, coolant temperature, battery charge, air clogging etc. If an abnormality occurs, it is displayed on the LCD. The monitor also indicates when the oil or the filters must be replaced.


Cab

Operator's environment

The PC118MR-8 has a spacious ROPS cab (ISO 12117-2) designed to absorb shocks and offer maximum protection in case of a roll over. It also gives outstanding comfort to this compact machine, even to the most demanding operator. With a double slide mechanism, the seat and PPC levers can be conveniently adjusted for maximum productivity and minimum fatigue. Wide front and side windows - and an opening skylight - enable better visibility in any situation. The standard automatic air conditioner completes a comfortable work environment by maintaining a perfect temperature in the cab, no matter the weather outside.
