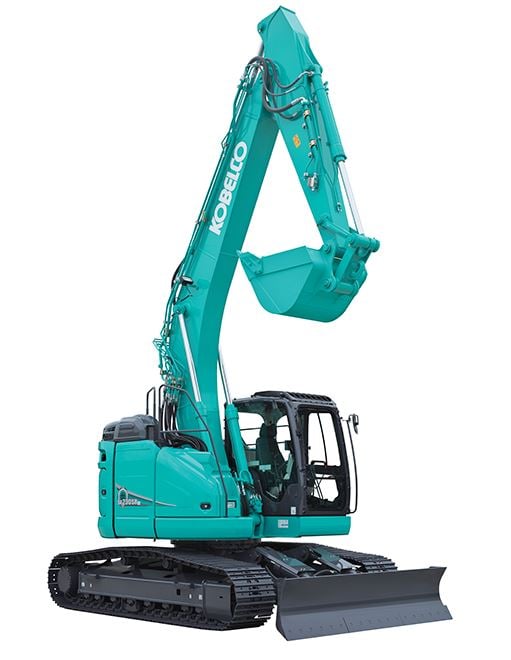

SK 230 SRLC 3 Kobelco excavator specs & Dimensions (2013 - 2016)

Kobelco SK 230 SRLC 3 is a Crawler Excavator manufactured from 2013 to 2016. It has a weight of 22.9 tons and a track width of 600…

Kobelco SK 230 SRLC 3 is a Crawler Excavator manufactured from 2013 to 2016. It has a weight of 22.9 tons and a track width of 600 mm. The transport dimensions are 8.83 meters in length, 2.99 meters in width, and 3.16 meters in height. The excavator features a tear-out force of 96.8 kN, a dredging depth of 6.58 meters, and a maximum horizontal reach of 9.7 meters. The bucket width is 1.06 meters with a capacity of 0.8 cubic meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, and an overload alert system.

Crawler Excavators Kobelco SK 230 SRLC 3
Crawler Excavators Kobelco SK 230 SRLC 3
Crawler Excavators Kobelco SK 230 SRLC 3
Crawler Excavators Kobelco SK 230 SRLC 3
Crawler Excavators Kobelco SK 230 SRLC 3
Crawler Excavators Kobelco SK 230 SRLC 3
Crawler Excavators Kobelco SK 230 SRLC 3
Crawler Excavators Kobelco SK 230 SRLC 3

Visit Kobelco live at

Technical specs - SK 230 SRLC 3 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.9 t
Transport length
8.83 m
Transport width
2.99 m
Transport height
3.16 m
Bucket capacity
0.8 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.7 m
Dredging depth
6.58 m
Tear-out force
96.8 kN
Bucket width
1.06 m
Engine manuf.
Hino
Engine type
J 05 E-TJ
Engine power
124 kW
Displacement
5.123 l
Revolutions at max torque
1600 rpm
Emission level
Tier 4 interim

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 230 SRLC 3 FAQ

When was the Kobelco SK 230 SRLC 3 manufactured?

The Kobelco SK 230 SRLC 3 was manufactured from 2013 to 2016.

How much does the Kobelco SK 230 SRLC 3 weigh?

The Kobelco SK 230 SRLC 3 weighs 22.9 tons.

What are the transport dimensions of the Kobelco SK 230 SRLC 3?

The Kobelco SK 230 SRLC 3 has a transport length of 8.83 meters, a transport width of 2.99 meters, and a transport height of 3.16 meters.

What are the undercarriage specifications of the Kobelco SK 230 SRLC 3?

The Kobelco SK 230 SRLC 3 has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Kobelco SK 230 SRLC 3?

The Kobelco SK 230 SRLC 3 has a dredging depth of 6.58 meters, a maximum horizontal reach of 9.7 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Kobelco SK 230 SRLC 3?

The Kobelco SK 230 SRLC 3 has a tear-out force of 96.8 kN.

What are the bucket specifications of the Kobelco SK 230 SRLC 3 excavator?

The Kobelco SK 230 SRLC 3 excavator has a bucket capacity of 0.8 cubic meters and a bucket width of 1.06 meters.

How much is a Kobelco SK 230 SRLC 3 Crawler excavator (2013u20132016) worth?

The residual value of the Kobelco SK 230 SRLC 3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
