    Lectura specs Construction machinery Crawler Excavators Crawler Excavators Kobelco Kobelco SK 140 SRL 3 specifications

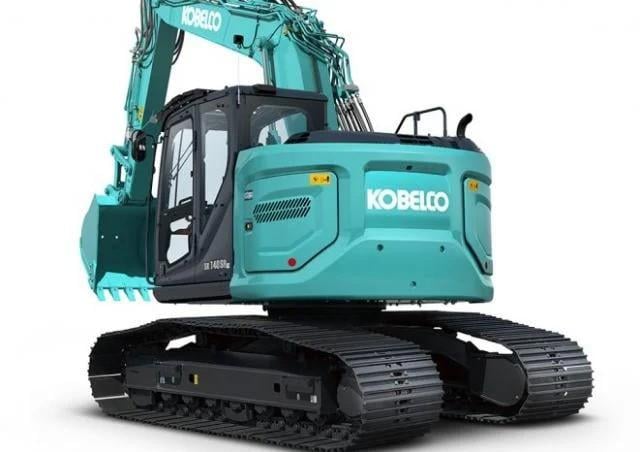

    Technical specs - SK 140 SRL 3 Kobelco

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 15.7 t
    Transport length 7.45 m
    Transport width 2.74 m
    Transport height 3.05 m
    Bucket capacity 0.45 m³
    Undercarriage SL
    Track width 700 mm
    Boom MB
    Max. Reach horizontal 8.34 m
    Dredging depth 5.33 m
    Tear-out force 64.4 kN
    Bucket width 0.8 m
    Engine manuf. Mitsubishi
    Engine type D 04 EG-TAA
    Engine power 74 kW
    Displacement 3.331 l
    Revolutions at max torque 1600 rpm
    Emission level Tier 4 interim
    Bucket capacity min. ###
    Bucket capacity max. ###
    Engine power ###
    Dimension lxwxh ###
    Max. torque ###
    No. of cylinders ###
    Cylinder bore x stroke ###
    Weight ###
    Dipper Length - Standard ###
    Engine Manufacturer ###
    Engine Model ###
    Aspiration ###
    Rated speed ###
    Engine Output - Net ###
    Engine Output - Gross ###
    Number Of Track Rollers - Each Side ###
    Track Shoe Width ###
    Transport Length Mono Boom ###
    Transport Height - Maximum ###
    Overall Undercarriage Width ###
    Track Length On Ground ###
    Zero Tailswing? ###
    Ground Clearance ###
    Heaped Bucket Capacity - Standard ###
    Overall Bucket Width - Standard ###
    Width over fixed tracks ###
    Digging Reach - Mono Boom ###
    Ground Level Reach - Mono Boom ###
    Dig Height - Mono Boom ###
    Dump Height - Mono Boom ###
    Vertical Wall - Mono Boom ###
    Dig Depth - Mono Boom ###
    Mono Boom - Size ###
    Standard Dipper ###
    Fuel Tank ###
    Hydraulic Tank ###
    Dipper Tearout ###
    Bucket Breakout ###
    Main Pump ###
    Total Flow ###
    Operating Weight ###

    Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

    SK 140 SRL 3 Kobelco - Special equipment

    • Diesel particulate filter
    • Track adaption
    • Blade
    • Cabin adjustment
    • Overload alert
    • Material Handling Excavator
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
    X

    What do you think about this machine?


    Sell your Kobelco SK 140 SRL 3 fast and easy

    Receive the best purchase offer² within 48 hours¹ from the network of WeBuyHeavyMachines.com with over 1,000 international dealers.

    Compare Kobelco SK 140 SRL 3 with other models

    No image available

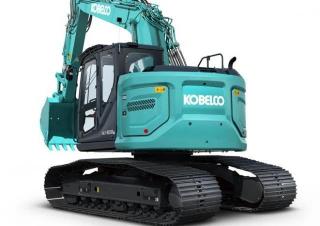

    Kobelco SK 140 SRL 3
