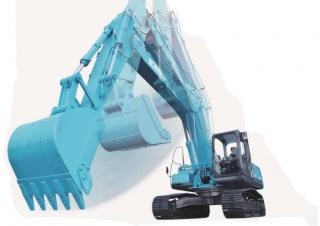

SK 350 L 9 Kobelco excavator specs & Dimensions (2013 - 2015)

Kobelco SK 350 L 9 is a Crawler Excavator manufactured from 2013 to 2015. It has a weight of 35.4 tons and a track width of 600 mm…

Kobelco SK 350 L 9 is a Crawler Excavator manufactured from 2013 to 2015. It has a weight of 35.4 tons and a track width of 600 mm. The transport dimensions are 11.2 meters in length, 3.19 meters in width, and 3.21 meters in height. The machine features a tear-out force of 225 kN, a dredging depth of 8.41 meters, and a maximum horizontal reach of 11.97 meters. The bucket width is 1.45 meters with a capacity of 1.6 cubic meters. Special equipment includes air conditioning and a diesel particulate filter.

Crawler Excavators Kobelco SK 350 L 9

Visit Kobelco live at

Technical specs - SK 350 L 9 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.4 t
Transport length
11.2 m
Transport width
3.19 m
Transport height
3.21 m
Bucket capacity
1.6 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.97 m
Dredging depth
8.41 m
Tear-out force
225 kN
Bucket width
1.45 m
Engine manuf.
Hino
Engine type
J 08 E-UV
Engine power
213 kW
Displacement
7.684 l
Revolutions at max torque
1600 rpm

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 350 L 9 FAQ

When was the Kobelco SK 350 L 9 manufactured?

The Kobelco SK 350 L 9 was manufactured from 2013 to 2015.

How much does the Kobelco SK 350 L 9 weigh?

The Kobelco SK 350 L 9 weighs 35.4 tons.

What are the transport dimensions of the Kobelco SK 350 L 9 crawler excavator?

The Kobelco SK 350 L 9 has a transport length of 11.2 meters, a transport width of 3.19 meters, and a transport height of 3.21 meters.

What are the undercarriage specifications of the Kobelco SK 350 L 9?

The Kobelco SK 350 L 9 has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Kobelco SK 350 L 9?

The Kobelco SK 350 L 9 has a dredging depth of 8.41 meters, a maximum horizontal reach of 11.97 meters, and features a monobloc boom.

What is the tear-out force of the Kobelco SK 350 L 9?

The Kobelco SK 350 L 9 has a tear-out force of 225 kN.

What are the specifications of the primary work tool on the Kobelco SK 350 L 9?

The primary work tool of the Kobelco SK 350 L 9 has a bucket capacity of 1.6 cubic meters and a bucket width of 1.45 meters.

How much is a Kobelco SK 350 L 9 Crawler excavator (2013u20132015) worth?

The residual value of the Kobelco SK 350 L 9 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
