SK 220 XD 10 Kobelco excavator specs & Dimensions (2021 - 2026)

Kobelco SK 220 XD 10 is a crawler excavator manufactured since 2021, with a weight of 22 tons. It features a track width of 600 mm…

Kobelco SK 220 XD 10 is a crawler excavator manufactured since 2021, with a weight of 22 tons. It features a track width of 600 mm, a transport length of 9.68 meters, a transport width of 2.99 meters, and a transport height of 3.22 meters. The excavator has a tear-out force of 157 kN, a dredging depth of 6.16 meters, and a maximum horizontal reach of 10 meters. The bucket width is 1.61 meters, with a bucket capacity ranging from 0.59 m³ to 1.2 m³. It is equipped with air conditioning.

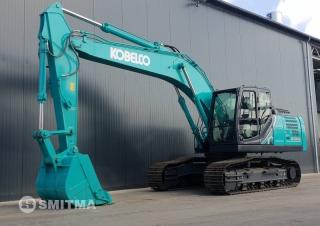

Crawler Excavators Kobelco SK 220 XD 10

Visit Kobelco live at

Technical specs - SK 220 XD 10 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Transport length
9.68 m
Transport width
2.99 m
Transport height
3.22 m
Bucket capacity min.
0.59 m³
Bucket capacity max.
1.2 m³
Track width
600 mm
Max. Reach horizontal
10 m
Dredging depth
6.16 m
Tear-out force
157 kN
Bucket width
1.61 m
Model series
SK
Engine manuf.
Hino
Engine type
J05ETG
Engine power
118 kW
Displacement
5.123 l
Revolutions at max torque
1600 rpm
Max. torque
592 Nm
No. of cylinders
4
Cylinder bore x stroke
112x130 mm

More technical details, like: bucket capacity, undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 220 XD 10 FAQ

When was the Kobelco SK 220 XD 10 manufactured?

The Kobelco SK 220 XD 10 was first produced in 2021.

How much does the Kobelco SK 220 XD 10 weigh?

The Kobelco SK 220 XD 10 weighs 22 tons.

What are the transport dimensions of the Kobelco SK 220 XD 10?

The Kobelco SK 220 XD 10 has a transport length of 9.68 meters, a transport width of 2.99 meters, and a transport height of 3.22 meters.

What is the track width of the Kobelco SK 220 XD 10's undercarriage?

The Kobelco SK 220 XD 10 has a track width of 600 mm.

What are the excavation performance specifications of the Kobelco SK 220 XD 10?

The Kobelco SK 220 XD 10 has a dredging depth of 6.16 meters and a maximum horizontal reach of 10 meters.

What power ratings are available for the Kobelco SK 220 XD 10?

The Kobelco SK 220 XD 10 does not have power ratings listed, but it has a tear-out force of 157 kN.

What are the bucket specifications of the Kobelco SK 220 XD 10?

The Kobelco SK 220 XD 10 has a bucket with a maximum capacity of 1.2 cubic meters, a minimum capacity of 0.59 cubic meters, and a width of 1.61 meters.

How much is a Kobelco SK 220 XD 10 Crawler excavator (2021u20132025) worth?

The residual value of the Kobelco SK 220 XD 10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kobelco SK 220 XD 10 overview

Engine

Power Meets Efficiency

In line with KOBELCO’s concept of mining-friendly construction machinery that will work long and hard on any site on the planet, the rugged machine body is newly designed, and comprehensive reinforcement makes the attachment more robust. It all adds up to KOBELCO’s toughest ever mining excavator. The latest hydraulics technology delivers both high-powered output and lower fuel consumption. As the 10th generation model of KOBELCO’s SK series, the SK220XD/SK220XDLC meets the needs of the most punishing mining sites with a performance that simply astounds.


Low Vibration

Oil springs absorb small vibration, and high suspension mounts filled with silicone oil reduce heavy vibration. The low noise achieved by this system provides excellent protection from vibration.


Multi-Display in Color

Full-color and graphic displays are easy to recognize on the LCD multi-display in the console. The display shows fuel consumption, maintenance intervals, and more.


Efficient Maintenance

Efficient maintenance keeps the machine in peak operating condition. There is ample space in the engine compartment for a mechanic to do maintenance work inside. The distance between steps is lower, making entry and exit easier. Additionally, the mechanic can work in comfort, without contortions or unnatural body positions. Finally, the hood is lighter and easier to raise and lower.


Hydraulic and electronic system

Increase in productivity means “Power”

Powerful travel system for easy transit over loose rocks, and highly reliable filtration system ensure higher machine performance.


Improved Filtration System Reliability

Clean, contaminant-free fuel and hydraulic fluid are essential to stable performance. The improved filtration systems reduce the risk of mechanical trouble and enhance longevity and durability.


Evolution Continues, with Improved Fuel Efficiency.

The new arm regeneration flow system more efficiently controls hydraulic fluid flow, and significant reduction of in-line resistance and pressure loss boosts fuel efficiency by about 19%.


Arm Interflow System

When lowering the boom, this system uses the downward force generated by the boom’s weight to push fluid to the excavator arm cylinder. This greatly reduces the need to apply power from outside the system.


Hydraulic circuit reduces energy loss

We have made every effort to enhance fuel efficiency by minimizing hydraulic pressure resistance, improving the hydraulic line layout to control friction resistance loss and minimizing valve resistance.


Upper Structure

Easy Cleaning

Special cowling frame design for easy mud removal cleaning. Detachable two-piece floor mat with handles for easy removal. A floor drain is located under the floor mat.


Cab

Comfortable Cab Is Now Safer than Ever.

A work environment that is quieter and more comfortable. A cab that puts the operator first is key to improved safety.


Air Conditioner Louvers behind the Seat

The large air conditioner has louvers on the back pillars that blow from the back to the right and left of the operator’s seat. They can be adjusted to the operator, who can always aim the breeze, which ensures a more comfortable operating environment.


ROPS Cab

ROPS (Roll-Over-Protective Structure)-compliant cab clears ISO standards (ISO12117-2: 2008) and ensures greater safety for the operator should the machine tip over.
