SK 210 NLC 11 Kobelco excavator specs & Dimensions (2021 - 2023)

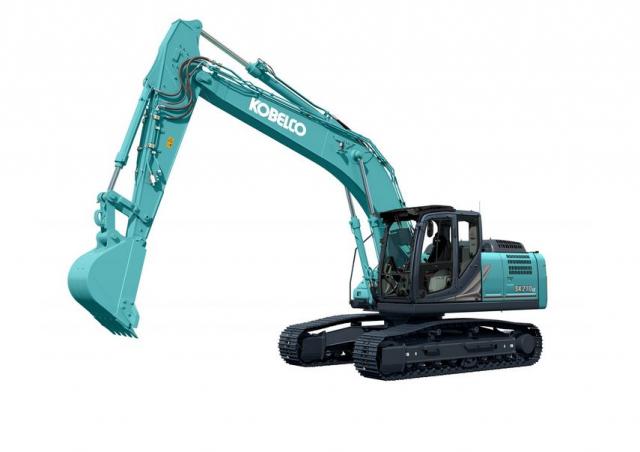

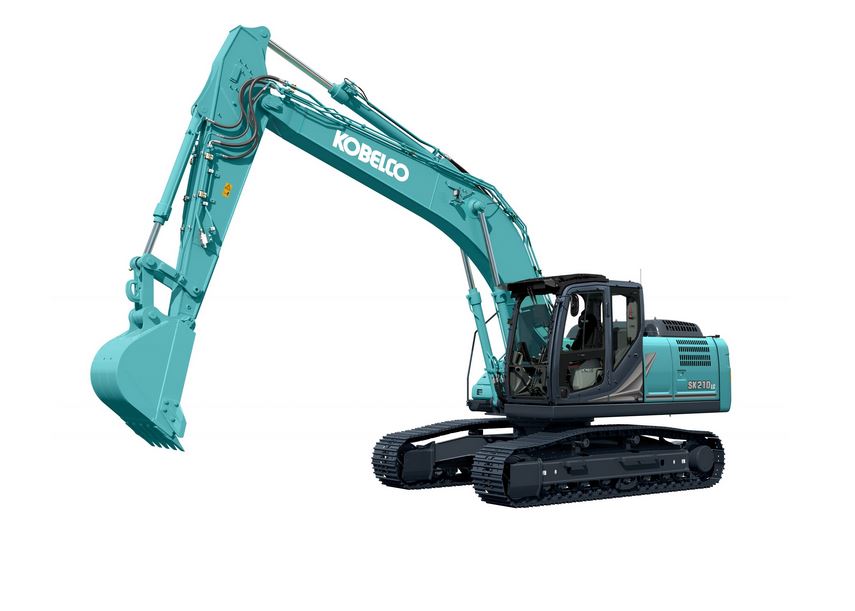

Kobelco SK 210 NLC 11 is a crawler excavator manufactured since 2021. It has a weight of 22.6 tons and a track width of 600 mm. Th…

Kobelco SK 210 NLC 11 is a crawler excavator manufactured since 2021. It has a weight of 22.6 tons and a track width of 600 mm. The transport dimensions are 9.74 meters in length, 2.8 meters in width, and 3.06 meters in height. The machine features a tear-out force of 133 kN, a dredging depth of 6.93 meters, and a maximum horizontal reach of 10.53 meters. The bucket width is 1.23 meters with a capacity of 0.93 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

Crawler Excavators Kobelco SK 210 NLC 11

Visit Kobelco live at

Technical specs - SK 210 NLC 11 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.6 t
Transport length
9.74 m
Transport width
2.8 m
Transport height
3.06 m
Bucket capacity
0.93 m³
Undercarriage
NLC
Track width
600 mm
Boom
VA
Max. Reach horizontal
10.53 m
Dredging depth
6.93 m
Tear-out force
133 kN
Bucket width
1.23 m
Model series
SK
Engine manuf.
Hino
Engine type
J 05 EVA-KSSA
Engine power
124 kW
Displacement
5.123 l
Revolutions at max torque
1600 rpm
Max. torque
660 Nm
No. of cylinders
4
Cylinder bore x stroke
112x130 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 210 NLC 11 FAQ

When was the Kobelco SK 210 NLC 11 manufactured?

The Kobelco SK 210 NLC 11 was manufactured from 2021 to 2023.

How much does the Kobelco SK 210 NLC 11 weigh?

The Kobelco SK 210 NLC 11 weighs 22.6 tons.

What are the transport dimensions of the Kobelco SK 210 NLC 11?

The Kobelco SK 210 NLC 11 has a transport length of 9.74 meters, a transport width of 2.8 meters, and a transport height of 3.06 meters.

What is the fuel consumption range of the Kobelco SK 210 NLC 11?

The Kobelco SK 210 NLC 11 has a fuel consumption range of 4.8 to 17.2 liters per hour.

What are the undercarriage specifications of the Kobelco SK 210 NLC 11?

The Kobelco SK 210 NLC 11 has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Kobelco SK 210 NLC 11?

The Kobelco SK 210 NLC 11 has an adjustable boom, a dredging depth of 6.93 meters, and a maximum horizontal reach of 10.53 meters.

What is the tear-out force of the Kobelco SK 210 NLC 11, the only available power-related specification?

The Kobelco SK 210 NLC 11 has a tear-out force of 133 kN. No other power rating data is provided.

What are the specifications of the primary work tool bucket on the Kobelco SK 210 NLC 11?

The primary work tool bucket of the Kobelco SK 210 NLC 11 has a capacity of 0.93 cubic meters and a width of 1.23 meters.

How much is a Kobelco SK 210 NLC 11 Crawler excavator (2021u20132023) worth?

The residual value of the Kobelco SK 210 NLC 11 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
