SK 210 LC 9 Kobelco excavator specs & Dimensions (2013 - 2015)

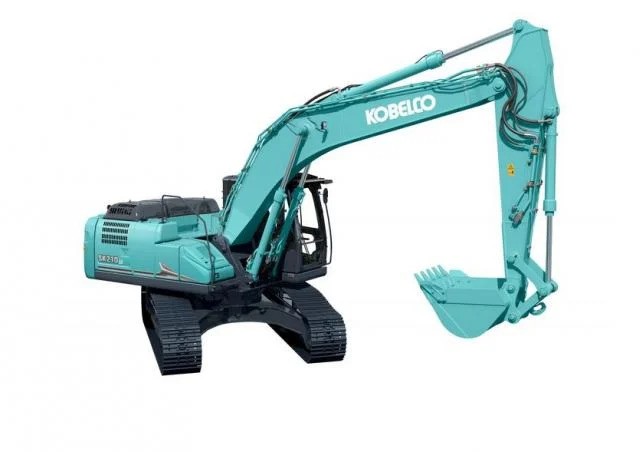

Kobelco SK 210 LC 9 is a Crawler Excavator manufactured from 2013 to 2015. It has a weight of 22.2 tons and a track width of 600 m…

Kobelco SK 210 LC 9 is a Crawler Excavator manufactured from 2013 to 2015. It has a weight of 22.2 tons and a track width of 600 mm. The transport dimensions are 9.7 meters in length, 2.99 meters in width, and 3.07 meters in height. The excavator features a tear-out force of 133 kN, a dredging depth of 6.93 meters, and a maximum horizontal reach of 10.53 meters. The bucket width is 1.23 meters with a capacity of 0.93 cubic meters. Special equipment includes air conditioning and a diesel particulate filter.

Crawler Excavators Kobelco SK 210 LC 9

Visit Kobelco live at

Technical specs - SK 210 LC 9 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.2 t
Transport length
9.7 m
Transport width
2.99 m
Transport height
3.07 m
Bucket capacity
0.93 m³
Undercarriage
LC
Track width
600 mm
Boom
VA
Max. Reach horizontal
10.53 m
Dredging depth
6.93 m
Tear-out force
133 kN
Bucket width
1.23 m
Engine manuf.
Hino
Engine type
J 05 E-TJ
Engine power
124 kW
Displacement
5.123 l
Revolutions at max torque
1600 rpm
Emission level
Tier 4 interim

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Kobelco SK 210 LC 9 FAQ

When was the Kobelco SK 210 LC 9 manufactured?

The Kobelco SK 210 LC 9 was manufactured from 2013 to 2015.

How much does the Kobelco SK 210 LC 9 weigh?

The Kobelco SK 210 LC 9 weighs 22.2 tons.

What are the transport dimensions of the Kobelco SK 210 LC 9 crawler excavator?

The Kobelco SK 210 LC 9 has a transport length of 9.7 meters, a transport width of 2.99 meters, and a transport height of 3.07 meters.

What are the undercarriage specifications of the Kobelco SK 210 LC 9?

The Kobelco SK 210 LC 9 has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Kobelco SK 210 LC 9?

The Kobelco SK 210 LC 9 has a dredging depth of 6.93 meters, a maximum horizontal reach of 10.53 meters, and features an adjustable boom.

What is the power rating of the Kobelco SK 210 LC 9?

The source data does not provide power rating information for the Kobelco SK 210 LC 9.

What are the bucket specifications of the Kobelco SK 210 LC 9 excavator?

The Kobelco SK 210 LC 9 excavator has a bucket capacity of 0.93 cubic meters and a bucket width of 1.23 meters.

How much is a Kobelco SK 210 LC 9 Crawler excavator (2013u20132015) worth?

The residual value of the Kobelco SK 210 LC 9 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
