HD514MR-7 Kato excavator specs & Dimensions (2017 - 2023)

Kato HD514MR-7 is a Crawler Excavator manufactured since 2017, with a weight of 14.1 t. It features a track width of 500 mm, a tra…

Kato HD514MR-7 is a Crawler Excavator manufactured since 2017, with a weight of 14.1 t. It features a track width of 500 mm, a transport length of 7.47 m, a transport width of 2.49 m, and a transport height of 2.82 m. The excavator has a tear-out force of 98 kN, a dredging depth of 5.54 m, and a maximum horizontal reach of 8.45 m. It comes with a bucket width of 0.98 m and a bucket capacity of 0.5 m³. Special equipment includes air conditioning.

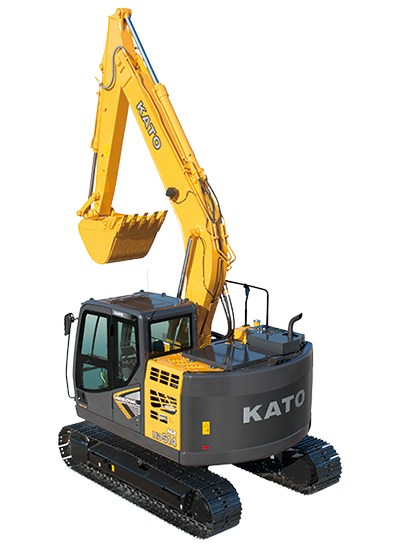

Crawler Excavators Kato HD514MR-7

Technical specs - HD514MR-7 Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.1 t
Transport length
7.47 m
Transport width
2.49 m
Transport height
2.82 m
Bucket capacity
0.5 m³
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.45 m
Dredging depth
5.54 m
Tear-out force
98 kN
Bucket width
0.98 m
Model series
HD
Engine manuf.
Isuzu
Engine type
4JJ1X
Engine power
78.5 kW
Displacement
2.999 l
Revolutions at max torque
1800 rpm
Max. torque
375 Nm
No. of cylinders
4
Cylinder bore x stroke
95.4x104x9 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD514MR-7 FAQ

When was the Kato HD514MR-7 manufactured?

The Kato HD514MR-7 was manufactured from 2017 to 2023.

How much does the Kato HD514MR-7 weigh?

The Kato HD514MR-7 weighs 14.1 tons.

What are the transport dimensions of the Kato HD514MR-7 crawler excavator?

The Kato HD514MR-7 has a transport length of 7.47 meters, a transport width of 2.49 meters, and a transport height of 2.82 meters.

What is the track width of the Kato HD514MR-7's undercarriage?

The Kato HD514MR-7 has a track width of 500 mm.

What are the excavation performance specifications of the Kato HD514MR-7?

The Kato HD514MR-7 has a dredging depth of 5.54 meters, a maximum horizontal reach of 8.45 meters, and features a monobloc boom.

What is the tear-out force of the Kato HD514MR-7?

The Kato HD514MR-7 has a tear-out force of 98 kN.

What are the specifications of the primary work tool on the Kato HD514MR-7?

The primary work tool of the Kato HD514MR-7 has a bucket capacity of 0.5 cubic meters and a bucket width of 0.98 meters.

How much is a Kato HD514MR-7 Crawler excavator (2017u20132023) worth?

The residual value of the Kato HD514MR-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Kato HD514MR-7 from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Compare Kato HD514MR-7 with similar Crawler Excavators

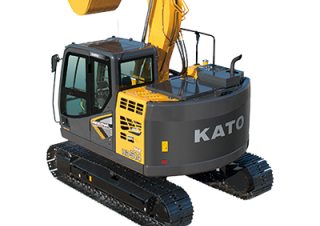

Kato HD514MR-7
