HD2045Ⅲ Kato excavator specs & Dimensions (2017 - 2023)

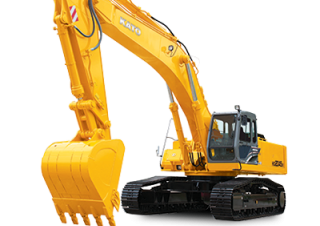

Kato HD2045Ⅲ is a crawler excavator manufactured since 2017. It has a weight of 46.2 tons and a track width of 600 mm. The transpo…

Kato HD2045Ⅲ is a crawler excavator manufactured since 2017. It has a weight of 46.2 tons and a track width of 600 mm. The transport dimensions are 11.99 meters in length, 3.58 meters in width, and 3.49 meters in height. The excavator features a tear-out force of 276 kN, a dredging depth of 7.76 meters, and a maximum horizontal reach of 12.08 meters. The bucket width is 1.88 meters with a capacity of 2 cubic meters.

Crawler Excavators Kato HD2045Ⅲ

Technical specs - HD2045Ⅲ Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
46.2 t
Transport length
11.99 m
Transport width
3.58 m
Transport height
3.49 m
Bucket capacity
2 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
12.08 m
Dredging depth
7.76 m
Tear-out force
276 kN
Bucket width
1.88 m
Model series
HD
Engine manuf.
Mitsubishi
Engine type
6D24-TLE2A
Engine power
235 kW
Displacement
11.94 l
Revolutions at max torque
1200 rpm
Max. torque
1245 Nm
No. of cylinders
6
Cylinder bore x stroke
130x150 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD2045Ⅲ FAQ

When was the Kato HD2045u2161 manufactured?

The Kato HD2045u2161 was manufactured from 2017 to 2023.

How much does the Kato HD2045u2161 weigh?

The Kato HD2045u2161 weighs 46.2 tons.

What are the transport dimensions of the Kato HD2045u2161 crawler excavator?

The Kato HD2045u2161 crawler excavator has a transport length of 11.99 meters, a transport width of 3.58 meters, and a transport height of 3.49 meters.

What is the track width of the Kato HD2045u2161's undercarriage?

The Kato HD2045u2161 has a track width of 600 mm.

What are the excavation performance specifications of the Kato HD2045u2161 crawler excavator?

The Kato HD2045u2161 crawler excavator has a dredging depth of 7.76 meters, a maximum horizontal reach of 12.08 meters, and features a monobloc boom.

What is the tear-out force of the Kato HD2045u2161?

The Kato HD2045u2161 has a tear-out force of 276 kN.

What are the bucket specifications of the Kato HD2045u2161?

The bucket of the Kato HD2045u2161 has a capacity of 2 cubic meters and a width of 1.88 meters.

How much is a Kato HD2045u2162 Crawler excavator (2017u20132023) worth?

The residual value of the Kato HD2045u2162 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
