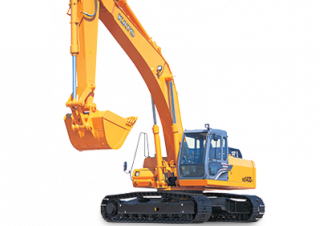

HD1430V Kato excavator specs & Dimensions (2017 - 2019)

Kato HD1430V is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 31 tons and a track width of 600 mm. The tr…

Kato HD1430V is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 31 tons and a track width of 600 mm. The transport dimensions are 11.2 meters in length, 3.19 meters in width, and 3.06 meters in height. The excavator features a tear-out force of 235 kN, a dredging depth of 7.45 meters, and a maximum horizontal reach of 11.18 meters. The bucket width is 1.4 meters with a capacity of 1.4 cubic meters.

Crawler Excavators Kato HD1430V

Technical specs - HD1430V Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
31 t
Transport length
11.2 m
Transport width
3.19 m
Transport height
3.06 m
Bucket capacity
1.4 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.18 m
Dredging depth
7.45 m
Tear-out force
235 kN
Bucket width
1.4 m
Model series
HD
Engine manuf.
Mitsubishi
Engine type
6M60-TLE3A
Engine power
183 kW
Displacement
7.54 l
Revolutions at max torque
1800 rpm
Max. torque
824 Nm
No. of cylinders
6
Cylinder bore x stroke
118x115 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD1430V FAQ

When was the Kato HD1430V manufactured?

The Kato HD1430V was manufactured from 2017 to 2019.

How much does the Kato HD1430V weigh?

The Kato HD1430V weighs 31 tons.

What are the transport dimensions of the Kato HD1430V?

The Kato HD1430V has a transport length of 11.2 meters, a transport width of 3.19 meters, and a transport height of 3.06 meters.

What is the track width of the Kato HD1430V's undercarriage?

The Kato HD1430V has a track width of 600 mm on its undercarriage.

What are the excavation performance specifications of the Kato HD1430V crawler excavator?

The Kato HD1430V has a dredging depth of 7.45 meters, a maximum horizontal reach of 11.18 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Kato HD1430V?

The Kato HD1430V has a tear-out force of 235 kN.

What are the bucket specifications of the Kato HD1430V crawler excavator?

The Kato HD1430V has a bucket capacity of 1.4 cubic meters and a bucket width of 1.4 meters.

How much is a Kato HD1430V Crawler excavator (2017u20132019) worth?

The residual value of the Kato HD1430V depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
