HD308US-7 Kato Imer excavator specs & Dimensions (2026 - 2026)

Weight: 7.47t – Transport length: 5.52m – Transport width: 2.3m – Transport height: 2.63m – Bucket capacity: 0.28m³ – Bucket capac…

Weight: 7.47t – Transport length: 5.52m – Transport width: 2.3m – Transport height: 2.63m – Bucket capacity: 0.28m³ – Bucket capacity min.: 0.12m³

Check out detailed specifications, information and technical data for Kato Imer HD308US-7 excavator manufactured between 2026 - 2026. Get more in-depth insight with Kato Imer HD308US-7 digger specifications. See information, like: Weight: 7.47t – Transport length: 5.52m – Transport width: 2.3m – Transport height: 2.63m – Bucket capacity: 0.28m³ – Bucket capacity min.: 0.12m³ and more.

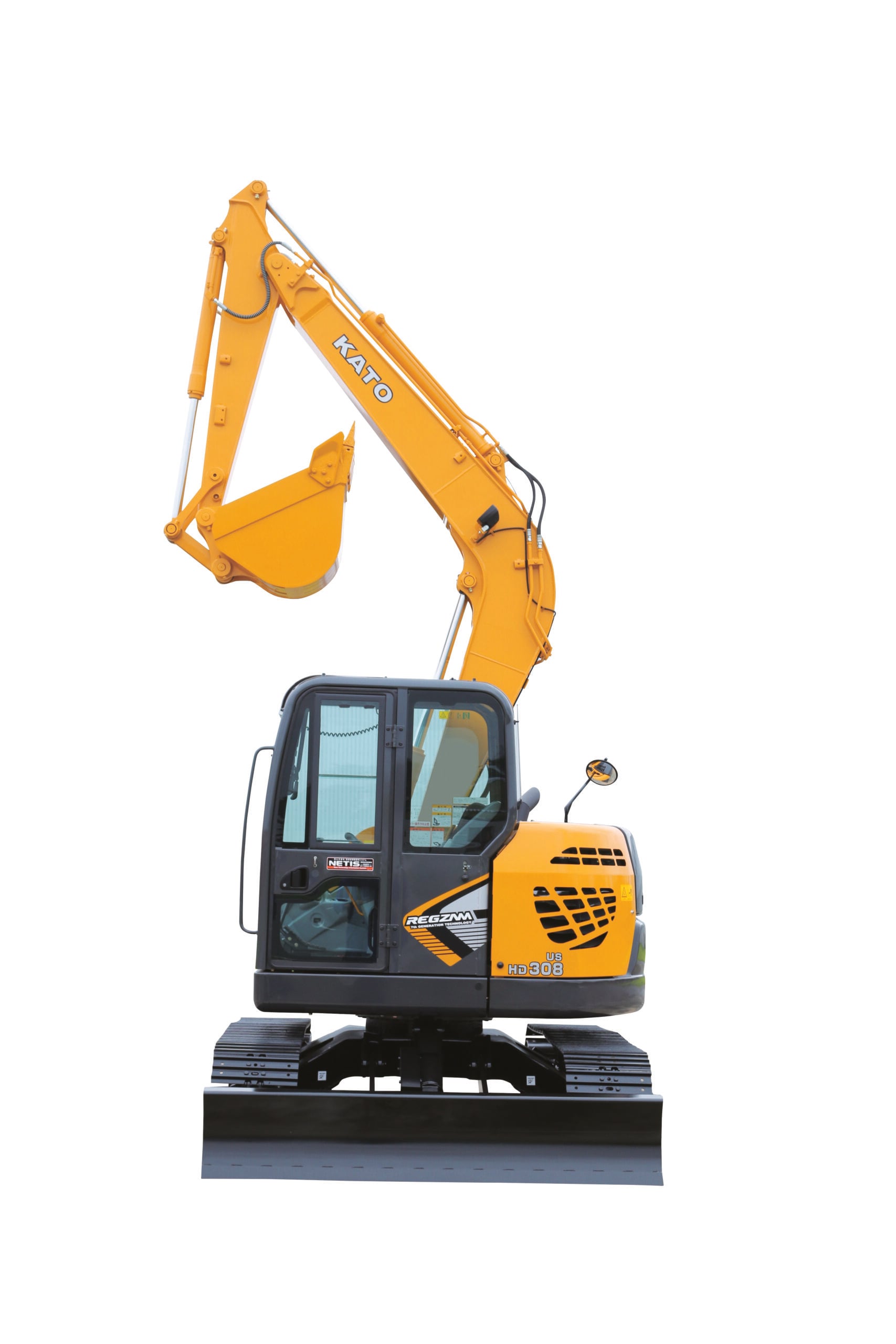

Crawler Excavators Kato Imer HD308US-7

Technical specs - HD308US-7 Kato Imer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.47 t
Transport length
5.52 m
Transport width
2.3 m
Transport height
2.63 m
Bucket capacity
0.28 m³
Bucket capacity min.
0.12 m³
Bucket capacity max.
0.34 m³
Track width
450 mm
Max. Reach horizontal
6.47 m
Dredging depth
4.12 m
Tear-out force
61.4 kN
Bucket width
0.65 m
Model series
7
Engine manuf.
Yanmar
Engine type
YDN-4TNV98C
Engine power
42.4 kW
Displacement
3.318 l
Revolutions at max torque
1300 rpm
Max. torque
235 Nm
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
Stage V

More technical details, like: undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
