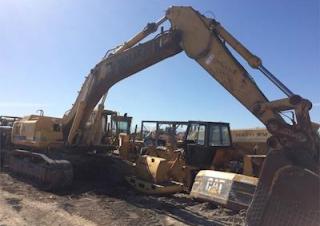

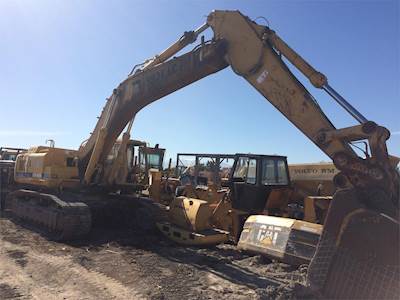

992E John Deere Construction excavator specs & Dimensions (1995 - 2021)

John Deere Construction 992E is a crawler excavator manufactured from 1995 to 2021. It has a weight of 44.2 tons and a track width…

John Deere Construction 992E is a crawler excavator manufactured from 1995 to 2021. It has a weight of 44.2 tons and a track width of 600 mm. The transport dimensions are 11.88 meters in length, 3.6 meters in width, and 3.21 meters in height. The machine features a tear-out force of 224 kN, a dredging depth of 7.26 meters, and a maximum horizontal reach of 11.16 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 992E

Technical specs - 992E John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
44.2 t
Transport length
11.88 m
Transport width
3.6 m
Transport height
3.21 m
Track width
600 mm
Max. Reach horizontal
11.16 m
Dredging depth
7.26 m
Tear-out force
224 kN
Model series
E
Engine manuf.
John Deere
Engine type
6101A
Engine power
213 kW
Displacement
10.14 l
Max. torque
1295 Nm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

John Deere Construction 992E FAQ

When was the John Deere Construction 992E manufactured?

The John Deere Construction 992E was manufactured from 1995 to 2021.

How much does the John Deere Construction 992E weigh?

The John Deere Construction 992E weighs 44.2 tons.

What are the transport dimensions of the John Deere Construction 992E?

The John Deere Construction 992E has a transport length of 11.88 meters, a transport width of 3.6 meters, and a transport height of 3.21 meters.

What is the track width of the John Deere Construction 992E crawler excavator?

The John Deere Construction 992E crawler excavator has a track width of 600 mm.

What is the excavation performance of the John Deere Construction 992E?

The John Deere Construction 992E has a dredging depth of 7.26 meters and a maximum horizontal reach of 11.16 meters.

What is the tear-out force of the John Deere Construction 992E?

The John Deere Construction 992E has a tear-out force of 224 kN.

How much is a John Deere Construction 992E Crawler excavator (1995u20132021) worth?

The residual value of the John Deere Construction 992E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
