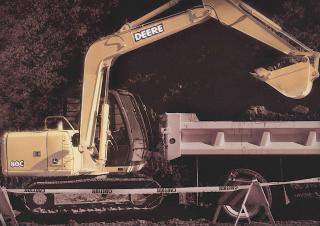

80C John Deere Construction excavator specs & Dimensions (2002 - 2021)

John Deere Construction 80C is a Crawler Excavator manufactured from 2002 to 2021. It has a weight of 7.15 tons, a track width of …

John Deere Construction 80C is a Crawler Excavator manufactured from 2002 to 2021. It has a weight of 7.15 tons, a track width of 600 mm, a transport length of 6.1 meters, a transport width of 2.35 meters, and a transport height of 2.5 meters. The excavator features a tear-out force of 37.5 kN, a dredging depth of 4.1 meters, and a maximum horizontal reach of 6.1 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 80C

Technical specs - 80C John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.15 t
Transport length
6.1 m
Transport width
2.35 m
Transport height
2.5 m
Track width
600 mm
Max. Reach horizontal
6.1 m
Dredging depth
4.1 m
Tear-out force
37.5 kN
Model series
C
Engine manuf.
Isuzu
Engine type
CC-4JG1
Engine power
39 kW
Displacement
3.1 l
Max. torque
192 Nm
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 80C FAQ

When was the John Deere Construction 80C manufactured?

The John Deere Construction 80C was manufactured from 2002 to 2021.

How much does the John Deere Construction 80C weigh?

The John Deere Construction 80C weighs 7.15 tons.

What are the transport dimensions of the John Deere Construction 80C?

The John Deere Construction 80C has a transport length of 6.1 meters, a transport width of 2.35 meters, and a transport height of 2.5 meters.

What is the track width of the John Deere Construction 80C crawler excavator?

The John Deere Construction 80C crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the John Deere Construction 80C?

The John Deere Construction 80C has a dredging depth of 4.1 meters and a maximum horizontal reach of 6.1 meters.

What is the tear-out force of the John Deere Construction 80C?

The John Deere Construction 80C has a tear-out force of 37.5 kN.

How much is a John Deere Construction 80C Crawler excavator (2002u20132021) worth?

The residual value of the John Deere Construction 80C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
