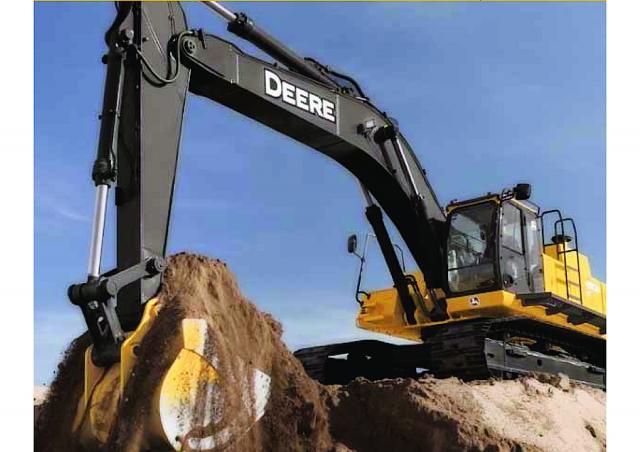

450D John Deere Construction excavator specs & Dimensions (2006 - 2021)

John Deere Construction 450D is a crawler excavator manufactured from 2006 to 2021. It has a weight of 48.16 tons and a track widt…

John Deere Construction 450D is a crawler excavator manufactured from 2006 to 2021. It has a weight of 48.16 tons and a track width of 900 mm. The transport dimensions are 12 meters in length, 3.64 meters in width, and 3.6 meters in height. The machine features a tear-out force of 254 kN, a dredging depth of 11.17 meters, and a maximum horizontal reach of 11.4 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 450D

Technical specs - 450D John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
48.16 t
Transport length
12 m
Transport width
3.64 m
Transport height
3.6 m
Track width
900 mm
Max. Reach horizontal
11.4 m
Dredging depth
11.17 m
Tear-out force
254 kN
Model series
D
Engine manuf.
Isuzu
Engine type
AH-6WG1XYSA-01
Engine power
260 kW
Displacement
15.681 l
Revolutions at max torque
1500 rpm
Max. torque
1580 Nm
No. of cylinders
6
Cylinder bore x stroke
147 x 154 mm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 450D FAQ

When was the John Deere Construction 450D manufactured?

The John Deere Construction 450D was manufactured from 2006 to 2021.

How much does the John Deere Construction 450D weigh?

The John Deere Construction 450D weighs 48.16 tons.

What are the transport dimensions of the John Deere Construction 450D?

The John Deere Construction 450D has a transport length of 12 meters, a transport width of 3.64 meters, and a transport height of 3.6 meters.

What is the track width of the John Deere Construction 450D crawler excavator?

The John Deere Construction 450D crawler excavator has a track width of 900 mm.

What are the excavation performance specifications of the John Deere Construction 450D?

The John Deere Construction 450D has a dredging depth of 11.17 meters and a maximum horizontal reach of 11.4 meters.

What is the tear-out force of the John Deere Construction 450D?

The John Deere Construction 450D has a tear-out force of 254 kN.

How much is a John Deere Construction 450D Crawler excavator (2006u20132021) worth?

The residual value of the John Deere Construction 450D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
