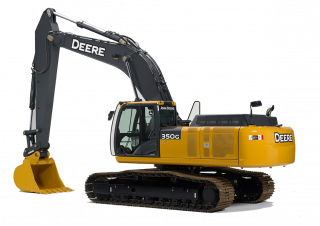

350G LC John Deere Construction excavator specs & Dimensions (2017 - 2026)

John Deere Construction 350G LC is a crawler excavator manufactured since 2017. It has a weight of 36.13 tons and a track width of…

John Deere Construction 350G LC is a crawler excavator manufactured since 2017. It has a weight of 36.13 tons and a track width of 800 mm. The transport dimensions are 11.29 meters in length, 3.39 meters in width, and 3.6 meters in height. The machine features a tear-out force of 246 kN, a dredging depth of 5.62 meters, and a maximum horizontal reach of 11.67 meters. It is equipped with air conditioning.

Crawler Excavators John Deere Construction 350G LC
Crawler Excavators John Deere Construction 350G LC
Crawler Excavators John Deere Construction 350G LC
Crawler Excavators John Deere Construction 350G LC

Technical specs - 350G LC John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.13 t
Transport length
11.29 m
Transport width
3.39 m
Transport height
3.6 m
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
11.67 m
Dredging depth
5.62 m
Tear-out force
246 kN
Model series
G
Engine manuf.
John Deere
Engine type
PowerTech PSS 9.0L
Engine power
202 kW
Displacement
9 l
Revolutions at max torque
1900 rpm
No. of cylinders
6
Emission level
Tier 4f/EU IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 350G LC FAQ

When was the John Deere Construction 350G LC manufactured?

The John Deere Construction 350G LC was first produced in 2017.

How much does the John Deere Construction 350G LC weigh?

The John Deere Construction 350G LC weighs 36.13 tons.

What are the transport dimensions of the John Deere Construction 350G LC?

The John Deere Construction 350G LC has a transport length of 11.29 meters, a transport width of 3.39 meters, and a transport height of 3.6 meters.

What are the undercarriage specifications of the John Deere Construction 350G LC?

The John Deere Construction 350G LC has a long undercarriage and a track width of 800 mm.

What are the excavation performance specifications of the John Deere Construction 350G LC?

The John Deere Construction 350G LC has a dredging depth of 5.62 meters, a maximum horizontal reach of 11.67 meters, and features a monobloc boom.

What is the tear-out force of the John Deere Construction 350G LC?

The John Deere Construction 350G LC has a tear-out force of 246 kN.

How much is a John Deere Construction 350G LC Crawler excavator (2017u20132025) worth?

The residual value of the John Deere Construction 350G LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
