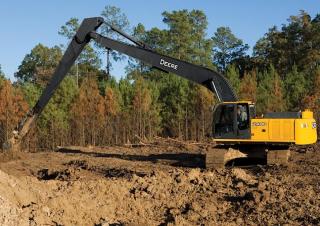

350D John Deere Construction excavator specs & Dimensions (2007 - 2021)

John Deere Construction 350D is a crawler excavator manufactured from 2007 to 2021. It has a weight of 36.4 tons and a track width…

John Deere Construction 350D is a crawler excavator manufactured from 2007 to 2021. It has a weight of 36.4 tons and a track width of 700 mm. The transport dimensions are 14.6 meters in length, 2.6 meters in width, and 3.16 meters in height. The dredging depth is 18.1 meters, and the maximum horizontal reach is 14.1 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 350D

Technical specs - 350D John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.4 t
Transport length
14.6 m
Transport width
2.6 m
Transport height
3.16 m
Track width
700 mm
Max. Reach horizontal
14.1 m
Dredging depth
18.1 m
Model series
D
Engine manuf.
John Deere
Engine type
6090H
Engine power
202 kW
Displacement
9 l
Max. torque
1399 Nm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 350D FAQ

When was the John Deere Construction 350D manufactured?

The John Deere Construction 350D was manufactured from 2007 to 2021.

How much does the John Deere Construction 350D weigh?

The John Deere Construction 350D weighs 36.4 tons.

What are the transport dimensions of the John Deere Construction 350D?

The John Deere Construction 350D has a transport length of 14.6 meters, a transport width of 2.6 meters, and a transport height of 3.16 meters.

What is the track width of the John Deere Construction 350D crawler excavator?

The John Deere Construction 350D crawler excavator has a track width of 700 mm.

What are the excavation performance specifications of the John Deere Construction 350D?

The John Deere Construction 350D has a dredging depth of 18.1 meters and a maximum horizontal reach of 14.1 meters.
