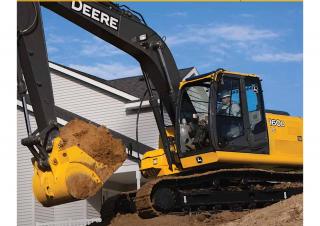

160C John Deere Construction excavator specs & Dimensions (2003 - 2008)

John Deere Construction 160C is a Crawler Excavator manufactured from 2003 to 2008. It has a weight of 16 tons and a track width o…

John Deere Construction 160C is a Crawler Excavator manufactured from 2003 to 2008. It has a weight of 16 tons and a track width of 600 mm. The transport dimensions are 8.53 meters in length, 2.59 meters in width, and 5.1 meters in height. The machine features a tear-out force of 82 kN, a dredging depth of 5.61 meters, and a maximum horizontal reach of 8.57 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 160C

Technical specs - 160C John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16 t
Transport length
8.53 m
Transport width
2.59 m
Transport height
5.1 m
Track width
600 mm
Max. Reach horizontal
8.57 m
Dredging depth
5.61 m
Tear-out force
82 kN
Model series
C
Engine manuf.
John Deere
Engine type
4045H
Engine power
81 kW
Displacement
4.5 l
Max. torque
410 Nm
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 160C FAQ

When was the John Deere Construction 160C manufactured?

The John Deere Construction 160C was manufactured from 2003 to 2008.

How much does the John Deere Construction 160C weigh?

The John Deere Construction 160C weighs 16 tons.

What are the transport dimensions of the John Deere Construction 160C?

The John Deere Construction 160C has a transport length of 8.53 meters, a transport width of 2.59 meters, and a transport height of 5.1 meters.

What is the track width of the John Deere Construction 160C crawler excavator?

The John Deere Construction 160C crawler excavator has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the John Deere Construction 160C?

The John Deere Construction 160C has a dredging depth of 5.61 meters and a maximum horizontal reach of 8.57 meters.

What is the tear-out force of the John Deere Construction 160C, given that no power rating data is available?

The John Deere Construction 160C has a tear-out force of 82 kN; no power rating data is provided.

How much is a John Deere Construction 160C Crawler excavator (2003u20132008) worth?

The residual value of the John Deere Construction 160C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
