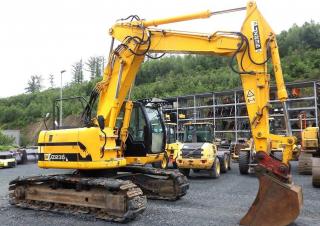

JZ 235 L TAB JCB excavator specs & Dimensions (2005 - 2013)

JCB JZ 235 L TAB is a crawler excavator manufactured from 2005 to 2013, with a weight of 23.8 tons and a track width of 600 mm.

Visit JCB live at

Technical specs - JZ 235 L TAB JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.8 t
Undercarriage
LC
Track width
600 mm
Boom
VA
Model series
JZ
Engine manuf.
Isuzu
Engine type
4 HKIX
Engine power
128 kW
Displacement
5.199 l
Revolutions at max torque
2000 rpm

More technical details, like: transport length, transport width, transport height, bucket capacity, bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, max. torque...

More technical details, like: transport length, transport width, transport height, bucket capacity, bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JZ 235 L TAB FAQ

When was the JCB JZ 235 L TAB manufactured?

The JCB JZ 235 L TAB was manufactured from 2005 to 2013.

How much does the JCB JZ 235 L TAB weigh?

The JCB JZ 235 L TAB weighs 23.8 tons.

What are the undercarriage specifications of the JCB JZ 235 L TAB?

The JCB JZ 235 L TAB has a long undercarriage and a track width of 600 mm.

What type of boom does the JCB JZ 235 L TAB use for excavation?

The JCB JZ 235 L TAB uses an adjustable boom for excavation.

How much is a JCB JZ 235 L TAB Crawler excavator (2005u20132013) worth?

The residual value of the JCB JZ 235 L TAB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
