220X JCB excavator specs & Dimensions (2018 - 2020)

JCB 220X is a Crawler Excavator manufactured from 2018 to 2020, with a weight of 23.188 tons. It features a track width of 600 mm,…

JCB 220X is a Crawler Excavator manufactured from 2018 to 2020, with a weight of 23.188 tons. It features a track width of 600 mm, a transport length of 9.62 meters, a transport width of 2.99 meters, and a transport height of 3.2 meters. The machine has a tear-out force of 126.6 kN, a dredging depth of 6.1 meters, and a maximum horizontal reach of 9.36 meters. The bucket width is 1.5 meters, with a bucket capacity ranging from 0.38 m³ to 1.25 m³.

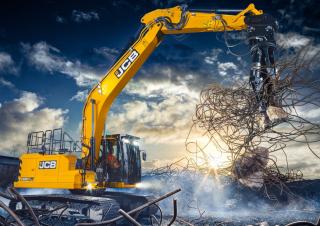

Crawler Excavators JCB 220X

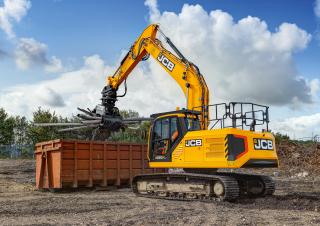

Crawler Excavators JCB 220X
Crawler Excavators JCB 220X
Crawler Excavators JCB 220X

Visit JCB live at

Technical specs - 220X JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.188 t
Transport length
9.62 m
Transport width
2.99 m
Transport height
3.2 m
Bucket capacity
1.25 m³
Bucket capacity min.
0.38 m³
Bucket capacity max.
1.25 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.36 m
Dredging depth
6.1 m
Tear-out force
126.6 kN
Bucket width
1.5 m
Model series
X

More technical details, like: engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 220X FAQ

When was the JCB 220X manufactured?

The JCB 220X was manufactured from 2018 to 2020.

How much does the JCB 220X weigh?

The JCB 220X weighs 23.19 tons.

What are the transport dimensions of the JCB 220X?

The JCB 220X has a transport length of 9.62 meters, a transport width of 2.99 meters, and a transport height of 3.2 meters.

What are the undercarriage specifications of the JCB 220X?

The JCB 220X has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB 220X?

The JCB 220X has a dredging depth of 6.1 meters, a maximum horizontal reach of 9.36 meters, and features a monobloc boom.

What are the power ratings of the JCB 220X?

The source data does not provide power ratings for the JCB 220X.

What are the bucket specifications of the JCB 220X crawler excavator?

The JCB 220X crawler excavator has a bucket capacity ranging from 0.38 to 1.25 cubic meters, with a bucket width of 1.5 meters.

How much is a JCB 220X Crawler excavator (2018u20132020) worth?

The residual value of the JCB 220X depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
