JS240LC JCB excavator specs & Dimensions (2012 - 2017)

JCB JS240LC is a crawler excavator manufactured from 2012 to 2017, with a weight of 25.06 tons. It features a track width of 600 m…

JCB JS240LC is a crawler excavator manufactured from 2012 to 2017, with a weight of 25.06 tons. It features a track width of 600 mm, a transport length of 10.06 meters, a transport width of 2.99 meters, and a transport height of 3.06 meters. The machine has a tear-out force of 120 kN.

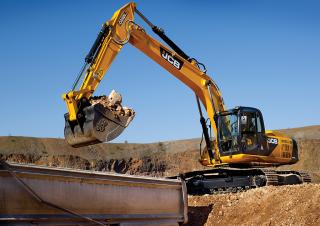

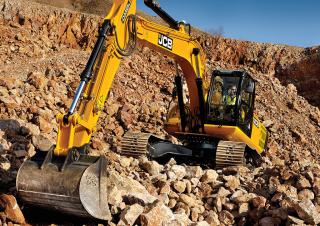

Crawler Excavators JCB JS240LC
Crawler Excavators JCB JS240LC
Crawler Excavators JCB JS240LC
Crawler Excavators JCB JS240LC
Crawler Excavators JCB JS240LC
Crawler Excavators JCB JS240LC
Crawler Excavators JCB JS240LC
Crawler Excavators JCB JS240LC

Visit JCB live at

Technical specs - JS240LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.06 t
Transport length
10.06 m
Transport width
2.99 m
Transport height
3.06 m
Bucket capacity
1.13 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.27 m
Dredging depth
6.79 m
Tear-out force
120 kN
Bucket width
1.2 m
Model series
JS
Engine manuf.
Isuzu
Engine type
4 HKIX
Engine power
140 kW
Displacement
2.193 l
Revolutions at max torque
2000 rpm
Emission level
4i/3b

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS240LC FAQ

When was the JCB JS240LC manufactured?

The JCB JS240LC was manufactured from 2012 to 2017.

How much does the JCB JS240LC weigh?

The JCB JS240LC weighs 25.06 tons.

What are the transport dimensions of the JCB JS240LC crawler excavator?

The JCB JS240LC has a transport length of 10.06 meters, a transport width of 2.99 meters, and a transport height of 3.06 meters.

What are the undercarriage specifications of the JCB JS240LC?

The JCB JS240LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB JS240LC?

The JCB JS240LC has a dredging depth of 6.79 meters, a maximum horizontal reach of 10.27 meters, and features a monobloc boom.

What is the tear-out force of the JCB JS240LC?

The JCB JS240LC has a tear-out force of 120 kN.

What are the specifications of the bucket on the JCB JS240LC crawler excavator?

The bucket of the JCB JS240LC has a capacity of 1.13 cubic meters and a width of 1.2 meters.

How much is a JCB JS240LC Crawler excavator (2012u20132017) worth?

The residual value of the JCB JS240LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB JS240LC overview

JCB JS240LC features overview

A history of innovation

We’ve been innovating since day one, and we’ve always cultivated a uniquely fearless approach to design. Indeed, we’ve invented whole new genres of machinery – the Fastrac and the telehandler for example – and revolutionised others like the skid steer loader.


Engine

Working environment

The JS115/130/145 creates a quieter working environment inside and out. Because we've reduced noise levels to 72dB(A) inside and 99dB(A) outside, you can use the machine at any location, any time.


Excellent versatility

The JS160/180/190 is a hugely versatile machine that's made all the more so by a big range of attachments, enabling you to carry out a wide range of tasks.


The efficient excavator

JCB's new EcoMAX T4i/Stage3B engine uses up to 10% less fuel than our Tier 3 units, saving you money.


Productivity and cost benefits

By providing information like idle time monitoring and machine fuel consumption, JCB Livelink helps reduce your fuel usage, saving money and improving productivity. Machine location information can help improve efficiency and perhaps even reduce insurance costs.


Hydraulic and electronic system

The safe choice

There's no need to climb onto the JS115/130/145 to check oil levels; all routine servicing can be done from ground level.


Extremely productive

With a massive 92kN bucket tearout and fast cycle times, the JS115/130/145 is extremely productive in all applications.


Stability and hydraulics

JCB’s innovative hydraulic regeneration system means oil is recycled across the cylinders for faster cycle times and reduced fuel consumption.


Upper Structure

High tensile strength

The reinforced boom and dipper is made of high tensile strength steel, with single piece wrapper plates and internal baffle plates.


Structural strength

The high strength undercarriage of a JCB115/130/145 uses a fully welded X frame construction for long term durability.


Strength and durability

JCB JS160/180/190's boast the best components in the industry, including Berco running gear, Kawasaki pumps, Kayaba valve blocks and JCB EcoMAX engines.


Boom and dipper

A JCB JS330/360 has cushioned boom and dipper ends to prevent shock loadings, protect your machine and increase operator comfort.


Cab

Easy does it

JCB JS115/130/145 bonnets open and close easily with gas-assisted cylinders, and the service bays are large and wide for good access.


Comfortably in control

Light, intuitive and smooth controls improve comfort and productivity. The JS160/180/190's joystick-mounted power boost button gives extra hydraulic power fast. The JS330/360’s cab and controls are independently adjustable so that it’s easy to find the perfect operating position.


Visibility and safety

Your JS160/180/190 is equipped with a full set of side and rear view mirrors for all round visibility and safety compliance.


Excellent visibility

A 70/30 front screen split gives JCB JS200/210/220 excellent front visibility. A clear view of the front right track provides easy, safe trench digging and manoeuvring.
