JS180 LC JCB excavator specs & Dimensions (2012 - 2017)

JCB JS180 LC is a crawler excavator manufactured from 2012 to 2017, with a weight of 18.89 tons. It features a track width of 600 …

JCB JS180 LC is a crawler excavator manufactured from 2012 to 2017, with a weight of 18.89 tons. It features a track width of 600 mm, a transport length of 8.42 meters, a transport width of 2.8 meters, and a transport height of 3.02 meters. The machine has a tear-out force of 68 kN.

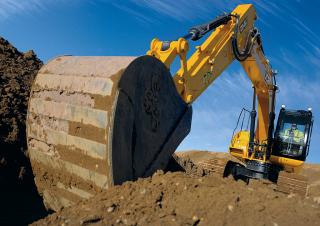

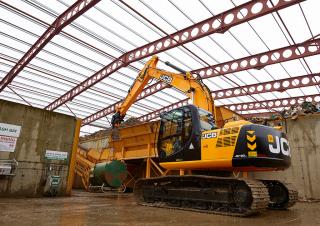

Crawler Excavators JCB JS180 LC
Crawler Excavators JCB JS180 LC
Crawler Excavators JCB JS180 LC
Crawler Excavators JCB JS180 LC
Crawler Excavators JCB JS180 LC
Crawler Excavators JCB JS180 LC

Visit JCB live at

Technical specs - JS180 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.89 t
Transport length
8.42 m
Transport width
2.8 m
Transport height
3.02 m
Bucket capacity
0.49 m³
Undercarriage
LC
Track width
600 mm
Boom
MB/VA
Max. Reach horizontal
9.223 m
Dredging depth
6.598 m
Tear-out force
68 kN
Bucket width
0.75 m
Model series
JS
Engine manuf.
JCB
Engine type
444 TCA
Engine power
93 kW
Displacement
4.4 l
Emission level
Tier 4i/3b

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS180 LC FAQ

When was the JCB JS180 LC manufactured?

The JCB JS180 LC was manufactured from 2012 to 2017.

How much does the JCB JS180 LC weigh?

The JCB JS180 LC weighs 18.89 tons.

What are the transport dimensions of the JCB JS180 LC crawler excavator?

The JCB JS180 LC has a transport length of 8.42 meters, a transport width of 2.8 meters, and a transport height of 3.02 meters.

What are the undercarriage specifications of the JCB JS180 LC?

The JCB JS180 LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB JS180 LC?

The JCB JS180 LC has a dredging depth of 6.598 meters, a maximum horizontal reach of 9.223 meters, and features a monobloc, adjustable boom.

What is the tear-out force of the JCB JS180 LC?

The JCB JS180 LC has a tear-out force of 68 kN.

What are the bucket specifications of the JCB JS180 LC excavator?

The JCB JS180 LC excavator has a bucket capacity of 0.49 cubic meters and a bucket width of 0.75 meters.

How much is a JCB JS180 LC Crawler excavator (2012u20132017) worth?

The residual value of the JCB JS180 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
