JS 210 NLC JCB excavator specs & Dimensions (2012 - 2014)

JCB JS 210 NLC is a crawler excavator manufactured from 2012 to 2014, weighing 21.09 tons. It features a track width of 600 mm, a …

JCB JS 210 NLC is a crawler excavator manufactured from 2012 to 2014, weighing 21.09 tons. It features a track width of 600 mm, a transport length of 9.584 meters, a transport width of 2.77 meters, and a transport height of 3.04 meters. The bucket width is 1.219 meters.

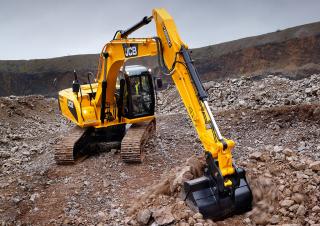

Crawler Excavators JCB JS 210 NLC

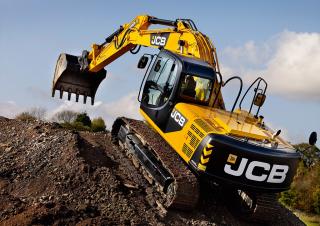

Crawler Excavators JCB JS 210 NLC
Crawler Excavators JCB JS 210 NLC
Crawler Excavators JCB JS 210 NLC
Crawler Excavators JCB JS 210 NLC
Crawler Excavators JCB JS 210 NLC

Visit JCB live at

Technical specs - JS 210 NLC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.09 t
Transport length
9.584 m
Transport width
2.77 m
Transport height
3.04 m
Bucket capacity
0.89 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.72 m
Dredging depth
5.52 m
Tear-out force
134.5 kN
Bucket width
1.219 m
Model series
JS
Engine manuf.
JCB
Engine type
EcoMax
Engine power
129 kW
Displacement
4.8 l
Revolutions at max torque
2000 rpm
Emission level
Tier 4i/3b

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS 210 NLC FAQ

When was the JCB JS 210 NLC manufactured?

The JCB JS 210 NLC was manufactured from 2012 to 2014.

How much does the JCB JS 210 NLC weigh?

The JCB JS 210 NLC weighs 21.09 tons.

What are the transport dimensions of the JCB JS 210 NLC?

The JCB JS 210 NLC has a transport length of 9.58 meters, a transport width of 2.77 meters, and a transport height of 3.04 meters.

What are the undercarriage specifications of the JCB JS 210 NLC?

The JCB JS 210 NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS 210 NLC?

The JCB JS 210 NLC has a dredging depth of 5.52 meters, a maximum horizontal reach of 8.72 meters, and features a monobloc boom.

What is the tear-out force of the JCB JS 210 NLC?

The JCB JS 210 NLC has a tear-out force of 134.5 kN.

What are the specifications of the bucket on the JCB JS 210 NLC crawler excavator?

The bucket of the JCB JS 210 NLC has a capacity of 0.89 cubic meters and a width of 1.219 meters.

How much is a JCB JS 210 NLC Crawler excavator (2012u20132014) worth?

The residual value of the JCB JS 210 NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
