JS 190 NLC JCB excavator specs & Dimensions (2012 - 2013)

JCB JS 190 NLC is a crawler excavator manufactured from 2012 to 2013, with a weight of 19.42 tons. It features a track width of 50…

JCB JS 190 NLC is a crawler excavator manufactured from 2012 to 2013, with a weight of 19.42 tons. It features a track width of 500 mm, a transport length of 8.67 meters, a transport width of 2.49 meters, and a transport height of 3.02 meters.

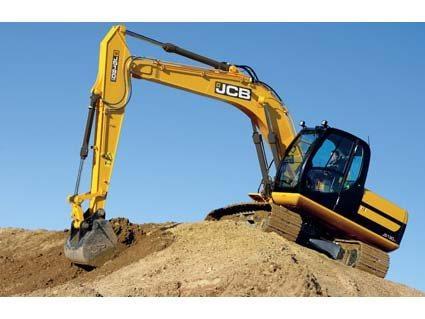

Crawler Excavators JCB JS 190 NLC

Visit JCB live at

Technical specs - JS 190 NLC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.42 t
Transport length
8.67 m
Transport width
2.49 m
Transport height
3.02 m
Bucket capacity
0.49 m³
Undercarriage
NLC
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.91 m
Dredging depth
6.25 m
Bucket width
0.75 m
Model series
JS
Engine manuf.
JCB
Engine type
4 HKIX
Engine power
128 kW
Displacement
5.193 l
Revolutions at max torque
2000 rpm
Emission level
Tier 3

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS 190 NLC FAQ

When was the JCB JS 190 NLC manufactured?

The JCB JS 190 NLC was manufactured from 2012 to 2013.

How much does the JCB JS 190 NLC weigh?

The JCB JS 190 NLC weighs 19.42 tons.

What are the transport dimensions of the JCB JS 190 NLC?

The JCB JS 190 NLC has a transport length of 8.67 meters, a transport width of 2.49 meters, and a transport height of 3.02 meters.

What are the undercarriage specifications of the JCB JS 190 NLC?

The JCB JS 190 NLC has a small undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the JCB JS 190 NLC?

The JCB JS 190 NLC has a dredging depth of 6.25 meters, a maximum horizontal reach of 8.91 meters, and is equipped with a monobloc boom.

What are the specifications of the primary work tool bucket on the JCB JS 190 NLC?

The primary work tool bucket on the JCB JS 190 NLC has a capacity of 0.49 cubic meters and a width of 0.75 meters.
