245XR JCB excavator specs & Dimensions (2021 - 2026)

JCB 245XR is a crawler excavator manufactured since 2021, with a weight of 25.733 tons. It features a track width of 600 mm, a tra…

JCB 245XR is a crawler excavator manufactured since 2021, with a weight of 25.733 tons. It features a track width of 600 mm, a transport length of 8.892 meters, a transport width of 2.99 meters, and a transport height of 3.031 meters. The excavator is equipped with special equipment including air conditioning and a diesel particulate filter.

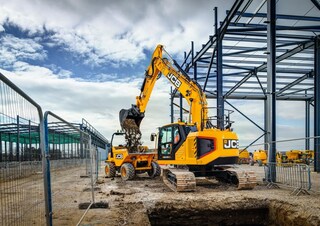

Crawler Excavators JCB 245XR
Crawler Excavators JCB 245XR
Crawler Excavators JCB 245XR
Crawler Excavators JCB 245XR
Crawler Excavators JCB 245XR
Crawler Excavators JCB 245XR
Crawler Excavators JCB 245XR
Crawler Excavators JCB 245XR
Crawler Excavators JCB 245XR
Crawler Excavators JCB 245XR

Visit JCB live at

Technical specs - 245XR JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.733 t
Transport length
8.892 m
Transport width
2.99 m
Transport height
3.031 m
Undercarriage
LC
Track width
600 mm
Boom
VA
Model series
X
Engine manuf.
JCB
Engine type
DieselMax
Engine power
129 kW
Displacement
4.8 l
Revolutions at max torque
1500 rpm
Max. torque
690 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB 245XR FAQ

When was the JCB 245XR manufactured?

The JCB 245XR was first produced in 2021.

How much does the JCB 245XR weigh?

The JCB 245XR weighs 25.73 tons.

What are the transport dimensions of the JCB 245XR crawler excavator?

The JCB 245XR has a transport length of 8.89 meters, a transport width of 2.99 meters, and a transport height of 3.03 meters.

What are the undercarriage specifications of the JCB 245XR?

The JCB 245XR has a long undercarriage and a track width of 600 mm.

What type of boom does the JCB 245XR have?

The JCB 245XR has an adjustable boom.

How much is a JCB 245XR Crawler excavator (2021u20132025) worth?

The residual value of the JCB 245XR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
