220X LR JCB excavator specs & Dimensions (2021 - 2026)

JCB 220X LR is a Crawler Excavator manufactured since 2020. It has a weight of 23.71 tons and a track width of 600 mm. The transpo…

JCB 220X LR is a Crawler Excavator manufactured since 2020. It has a weight of 23.71 tons and a track width of 600 mm. The transport dimensions are 12.546 meters in length, 2.77 meters in width, and 3.08 meters in height. The excavator features a tear-out force of 68.4 kN, a dredging depth of 11.99 meters, and a maximum horizontal reach of 15.63 meters. The bucket width is 1.5 meters, with a capacity ranging from 0.38 m³ to 1.25 m³. Special equipment includes air conditioning and a diesel particulate filter.

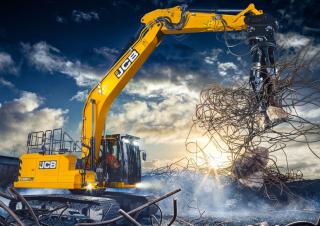

Crawler Excavators JCB 220X LR

Visit JCB live at

Technical specs - 220X LR JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.71 t
Transport length
12.546 m
Transport width
2.77 m
Transport height
3.08 m
Bucket capacity
1.25 m³
Bucket capacity min.
0.38 m³
Bucket capacity max.
1.25 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
15.63 m
Dredging depth
11.99 m
Tear-out force
68.4 kN
Bucket width
1.5 m
Model series
X
Engine manuf.
JCB
Engine type
DieselMax
Engine power
129 kW
Displacement
4.8 l
Revolutions at max torque
1500 rpm
Max. torque
690 Nm
No. of cylinders
4
Emission level
V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB 220X LR FAQ

When was the JCB 220X LR manufactured?

The JCB 220X LR was first produced in 2021.

How much does the JCB 220X LR weigh?

The JCB 220X LR weighs 23.71 tons.

What are the transport dimensions of the JCB 220X LR crawler excavator?

The JCB 220X LR has a transport length of 12.55 meters, a transport width of 2.77 meters, and a transport height of 3.08 meters.

What are the undercarriage specifications of the JCB 220X LR?

The JCB 220X LR has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB 220X LR?

The JCB 220X LR has a dredging depth of 11.99 meters, a maximum horizontal reach of 15.63 meters, and features a monobloc boom.

What is the power rating of the JCB 220X LR?

Power rating data is not available for the JCB 220X LR in the provided source data.

What are the bucket specifications of the JCB 220X LR crawler excavator?

The JCB 220X LR has a bucket capacity ranging from 0.38 to 1.25 cubic meters, with a bucket width of 1.5 meters.

How much is a JCB 220X LR Crawler excavator (2021u20132025) worth?

The residual value of the JCB 220X LR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
