220X LC JCB excavator specs & Dimensions (2021 - 2026)

JCB 220X LC is a Crawler Excavator manufactured since 2020, with a weight of 23.91 tons and a track width of 600 mm. Its transport…

JCB 220X LC is a Crawler Excavator manufactured since 2020, with a weight of 23.91 tons and a track width of 600 mm. Its transport dimensions are 9.62 meters in length, 2.77 meters in width, and 3.27 meters in height. The machine has a tear-out force of 126.6 kN, a dredging depth of 5.72 meters, and a maximum horizontal reach of 9.42 meters. The bucket width is 1.5 meters, with a capacity ranging from 0.38 m³ to 1.25 m³. It is equipped with air conditioning and a diesel particulate filter.

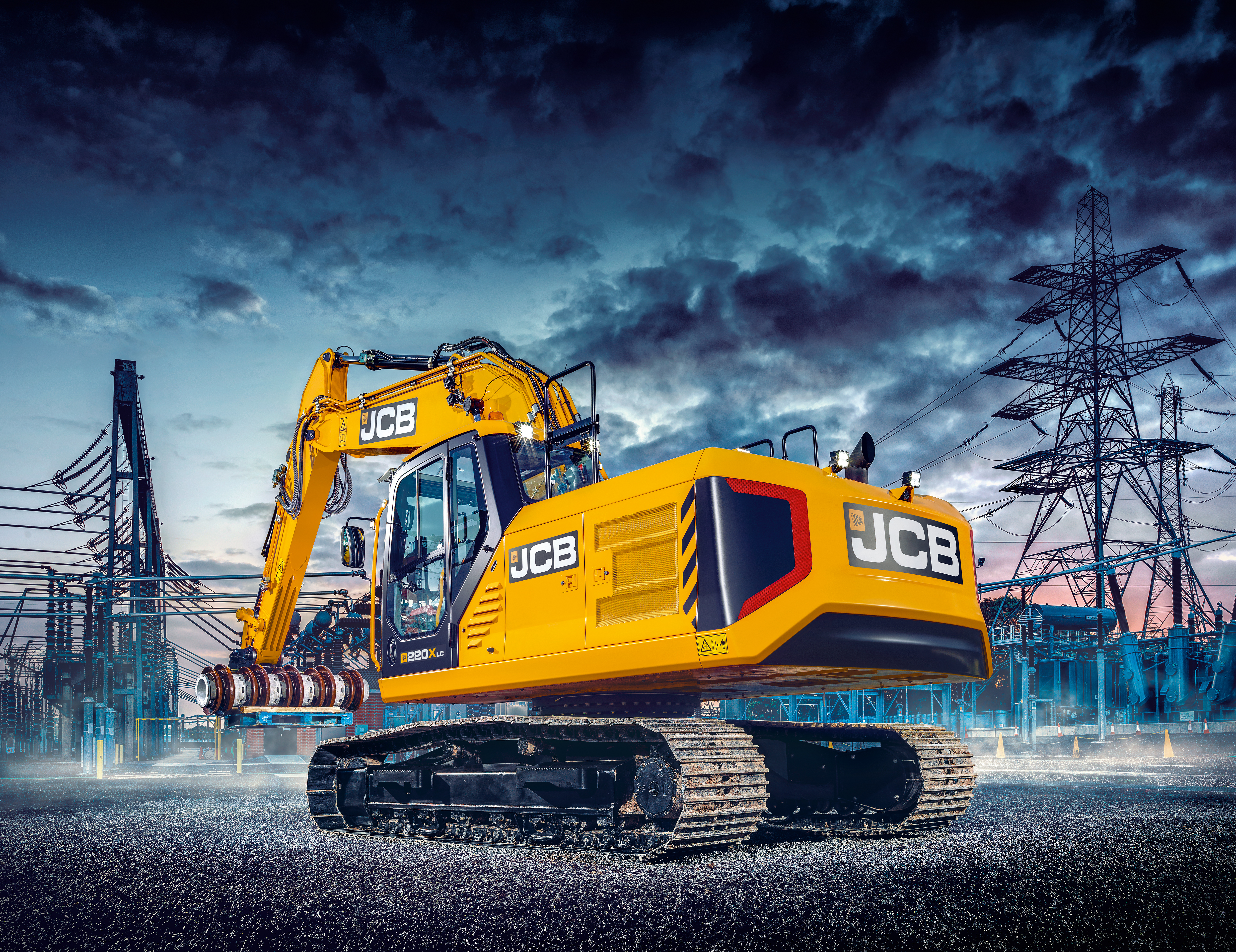

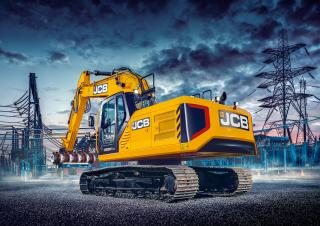

Crawler Excavators JCB 220X LC
Crawler Excavators JCB 220X LC
Crawler Excavators JCB 220X LC
Crawler Excavators JCB 220X LC

Visit JCB live at

Technical specs - 220X LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.91 t
Transport length
9.62 m
Transport width
2.77 m
Transport height
3.27 m
Bucket capacity
1.25 m³
Bucket capacity min.
0.38 m³
Bucket capacity max.
1.25 m³
Undercarriage
LC
Track width
600 mm
Boom
VA
Max. Reach horizontal
9.42 m
Dredging depth
5.72 m
Tear-out force
126.6 kN
Bucket width
1.5 m
Model series
X
Engine manuf.
JCB
Engine type
DieselMax
Engine power
129 kW
Displacement
4.8 l
Revolutions at max torque
1500 rpm
Max. torque
690 Nm
No. of cylinders
4
Emission level
V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB 220X LC FAQ

When was the JCB 220X LC manufactured?

The JCB 220X LC was first produced in 2021.

How much does the JCB 220X LC crawler excavator weigh?

The JCB 220X LC crawler excavator weighs 23.91 tons.

What are the transport dimensions of the JCB 220X LC crawler excavator?

The JCB 220X LC has a transport length of 9.62 meters, a transport width of 2.77 meters, and a transport height of 3.27 meters.

What are the undercarriage specifications of the JCB 220X LC?

The JCB 220X LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB 220X LC?

The JCB 220X LC has a dredging depth of 5.72 meters, a maximum horizontal reach of 9.42 meters, and features an adjustable boom.

What is the tear-out force of the JCB 220X LC?

The JCB 220X LC has a tear-out force of 126.6 kN.

What are the specifications of the bucket on the JCB 220X LC crawler excavator?

The JCB 220X LC crawler excavator has a bucket capacity ranging from 0.38 to 1.25 cubic meters, with a bucket width of 1.5 meters.

How much is a JCB 220X LC Crawler excavator (2021u20132025) worth?

The residual value of the JCB 220X LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
