8060 JCB excavator specs & Dimensions (2000 - 2008)

Model rating
6,00 / 10

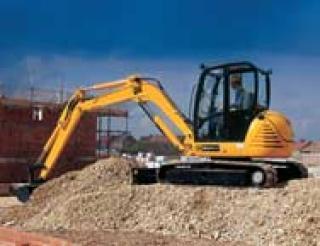

JCB 8060 is a Crawler Excavator manufactured from 2000 to 2008. It has a weight of 8.06 tons and a track width of 400 mm. The tran…

JCB 8060 is a Crawler Excavator manufactured from 2000 to 2008. It has a weight of 8.06 tons and a track width of 400 mm. The transport dimensions are 4.808 meters in length, 2 meters in width, and 2.661 meters in height. The bucket capacity is 0.17 cubic meters. Special equipment includes a blade and rubber track.

Crawler Excavators JCB 8060

Visit JCB live at

Technical specs - 8060 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.06 t
Transport length
4.808 m
Transport width
2 m
Transport height
2.661 m
Bucket capacity
0.17 m³
Track width
400 mm
Max. Reach horizontal
5.44 m
Dredging depth
3.73 m
Tear-out force
32.4 kN
Engine manuf.
Isuzu
Engine type
4 JG 1
Engine power
44.5 kW
Displacement
0.306 l
Revolutions at max torque
2300 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 8060 FAQ

When was the JCB 8060 manufactured?

The JCB 8060 was manufactured from 2000 to 2008.

How much does the JCB 8060 weigh?

The JCB 8060 weighs 8.06 tons.

What are the transport dimensions of the JCB 8060?

The JCB 8060 has a transport length of 4.81 meters, a transport width of 2 meters, and a transport height of 2.66 meters.

What is the track width of the JCB 8060 crawler excavator?

The JCB 8060 crawler excavator has a track width of 400 mm.

What are the excavation performance specifications of the JCB 8060?

The JCB 8060 has a dredging depth of 3.73 meters and a maximum horizontal reach of 5.44 meters.

What power ratings are available for the JCB 8060?

There are no power ratings provided for the JCB 8060 in the available data.

What is the bucket capacity of the JCB 8060 crawler excavator?

The bucket capacity of the JCB 8060 crawler excavator is 0.17 cubic meters.

How much is a JCB 8060 Crawler excavator (2000u20132008) worth?

The residual value of the JCB 8060 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating
6,00 / 10
Quotation mark

JCB 8060 user from

2007 machine. Hard to find basic parts.
