220X LC JCB excavator specs & Dimensions (2021 - 2026)

JCB 220X LC is a Crawler Excavator manufactured since 2020, with a weight of 23.19 tons. It features a track width of 600 mm, a tr…

JCB 220X LC is a Crawler Excavator manufactured since 2020, with a weight of 23.19 tons. It features a track width of 600 mm, a transport length of 9.62 meters, a transport width of 2.99 meters, and a transport height of 3.2 meters. The machine has a tear-out force of 126.6 kN, a dredging depth of 6.1 meters, and a maximum horizontal reach of 9.36 meters. The bucket width is 1.5 meters, with a bucket capacity ranging from 0.38 m³ to 1.25 m³. It is equipped with a blade as special equipment.

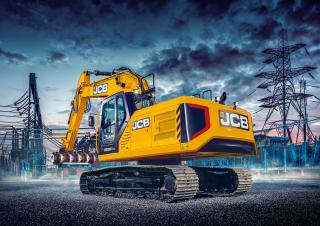

Crawler Excavators JCB 220X LC
Crawler Excavators JCB 220X LC
Crawler Excavators JCB 220X LC
Crawler Excavators JCB 220X LC

Visit JCB live at

Technical specs - 220X LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.19 t
Transport length
9.62 m
Transport width
2.99 m
Transport height
3.2 m
Bucket capacity
1.25 m³
Bucket capacity min.
0.38 m³
Bucket capacity max.
1.25 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.36 m
Dredging depth
6.1 m
Tear-out force
126.6 kN
Bucket width
1.5 m
Model series
X
Engine manuf.
JCB
Engine type
DieselMax
Engine power
129 kW
Displacement
4.8 l
Revolutions at max torque
1500 rpm
Max. torque
690 Nm
No. of cylinders
4
Cylinder bore x stroke
106x135 mm
Emission level
V

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB 220X LC FAQ

When was the JCB 220X LC manufactured?

The JCB 220X LC was first produced in 2021.

How much does the JCB 220X LC weigh?

The JCB 220X LC weighs 23.19 tons.

What are the transport dimensions of the JCB 220X LC crawler excavator?

The JCB 220X LC has a transport length of 9.62 meters, a transport width of 2.99 meters, and a transport height of 3.2 meters.

What are the undercarriage specifications of the JCB 220X LC?

The JCB 220X LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB 220X LC?

The JCB 220X LC has a dredging depth of 6.1 meters, a maximum horizontal reach of 9.36 meters, and is equipped with a monobloc boom.

What is the tear-out force of the JCB 220X LC?

The JCB 220X LC has a tear-out force of 126.6 kN.

What are the specifications of the primary work tool bucket on the JCB 220X LC?

The JCB 220X LC has a bucket with a capacity ranging from 0.38 to 1.25 cubic meters and a width of 1.5 meters.

How much is a JCB 220X LC Crawler excavator (2021u20132025) worth?

The residual value of the JCB 220X LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
