R80CR-9A Hyundai excavator specs & Dimensions (2020 - 2026)

Hyundai R80CR-9A is a Crawler Excavator manufactured since 2020. It has a weight of 8.35 tons and a track width of 450 mm. The tra…

Hyundai R80CR-9A is a Crawler Excavator manufactured since 2020. It has a weight of 8.35 tons and a track width of 450 mm. The transport dimensions are 6.17 meters in length, 2.3 meters in width, and 2.64 meters in height. The excavator features a tear-out force of 40.3 kN, a dredging depth of 4.14 meters, and a maximum horizontal reach of 6.96 meters. The bucket width is 0.81 meters with a capacity of 0.28 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and track adjustment.

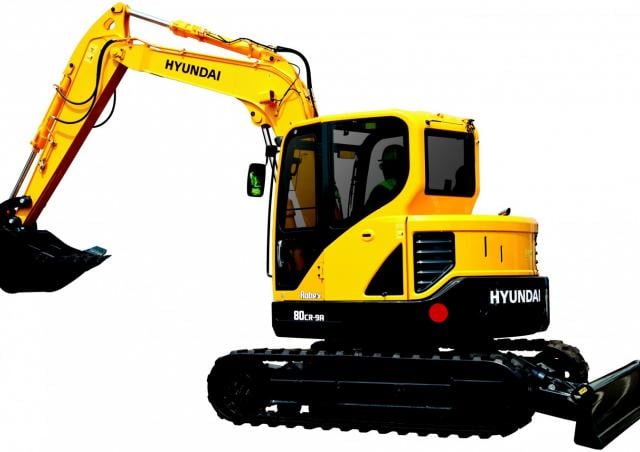

Crawler Excavators Hyundai R80CR-9A
Crawler Excavators Hyundai R80CR-9A
Crawler Excavators Hyundai R80CR-9A
Crawler Excavators Hyundai R80CR-9A

Visit Hyundai live at

Technical specs - R80CR-9A Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.35 t
Transport length
6.17 m
Transport width
2.3 m
Transport height
2.64 m
Bucket capacity
0.28 m³
Undercarriage
SL
Track width
450 mm
Boom
SKA
Max. Reach horizontal
6.96 m
Dredging depth
4.14 m
Tear-out force
40.3 kN
Bucket width
0.81 m
Model series
9A
Engine manuf.
Yanmar
Engine type
4TNV98C
Engine power
49.9 kW
Displacement
3.319 l
Revolutions at max torque
1550 rpm
Max. torque
235 Nm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai R80CR-9A FAQ

When was the Hyundai R80CR-9A manufactured?

The Hyundai R80CR-9A was first produced in 2020.

How much does the Hyundai R80CR-9A weigh?

The Hyundai R80CR-9A weighs 8.35 tons.

What are the transport dimensions of the Hyundai R80CR-9A crawler excavator?

The Hyundai R80CR-9A has transport dimensions of 6.17 meters in length, 2.3 meters in width, and 2.64 meters in height.

What are the undercarriage specifications of the Hyundai R80CR-9A?

The Hyundai R80CR-9A has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Hyundai R80CR-9A?

The Hyundai R80CR-9A has a dredging depth of 4.14 meters, a maximum horizontal reach of 6.96 meters, and features a lateral articulated boom.

What power ratings are available for the Hyundai R80CR-9A?

The source data does not provide any power ratings for the Hyundai R80CR-9A.

What are the specifications of the bucket on the Hyundai R80CR-9A?

The bucket of the Hyundai R80CR-9A has a capacity of 0.28 cubic meters and a width of 0.81 meters.

How much is a Hyundai R80CR-9A Crawler excavator (2020u20132025) worth?

The residual value of the Hyundai R80CR-9A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
