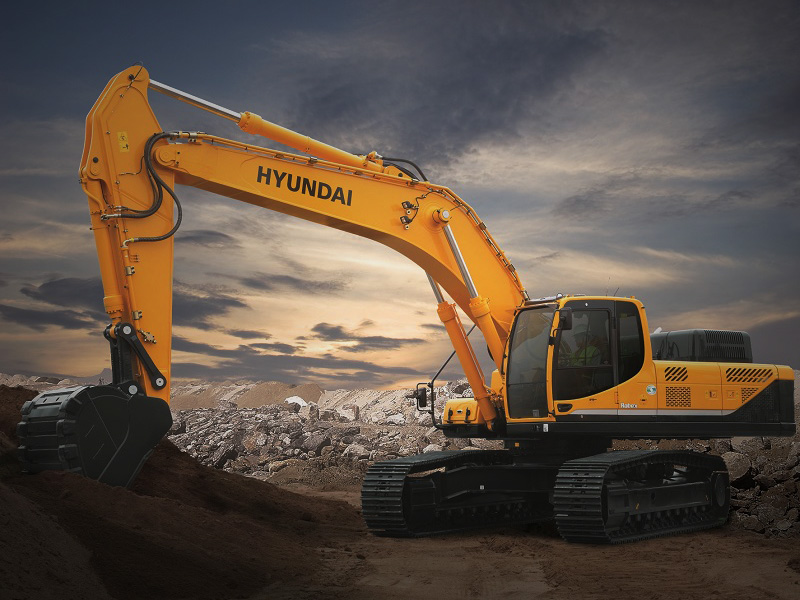

R 300 NLC-9 A Hyundai excavator specs & Dimensions (2013 - 2015)

Model rating
0,00 / 10

Hyundai R 300 NLC-9 A is a crawler excavator manufactured from 2013 to 2015. It has a weight of 29.3 tons, a track width of 600 mm…

Hyundai R 300 NLC-9 A is a crawler excavator manufactured from 2013 to 2015. It has a weight of 29.3 tons, a track width of 600 mm, a transport length of 10.56 meters, a transport width of 2.99 meters, and a transport height of 3.35 meters. The machine features a tear-out force of 209 kN and comes equipped with air conditioning and an overload alert system.

Crawler Excavators Hyundai R 300 NLC-9 A

Visit Hyundai live at

Technical specs - R 300 NLC-9 A Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.3 t
Transport length
10.56 m
Transport width
2.99 m
Transport height
3.35 m
Bucket capacity
1.9 m³
Undercarriage
LC/NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
18.51 m
Dredging depth
14.8 m
Tear-out force
209 kN
Bucket width
1.9 m
Model series
9A
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
168 kW
Displacement
6.7 l
Revolutions at max torque
1900 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai R 300 NLC-9 A FAQ

When was the Hyundai R 300 NLC-9 A manufactured?

The Hyundai R 300 NLC-9 A was manufactured from 2013 to 2015.

How much does the Hyundai R 300 NLC-9 A weigh?

The Hyundai R 300 NLC-9 A weighs 29.3 tons.

What are the transport dimensions of the Hyundai R 300 NLC-9 A crawler excavator?

The Hyundai R 300 NLC-9 A has a transport length of 10.56 meters, a width of 2.99 meters, and a height of 3.35 meters.

What are the undercarriage specifications of the Hyundai R 300 NLC-9 A crawler excavator?

The Hyundai R 300 NLC-9 A crawler excavator has a long, small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Hyundai R 300 NLC-9 A?

The Hyundai R 300 NLC-9 A has a dredging depth of 14.8 meters, a maximum horizontal reach of 18.51 meters, and features a monobloc boom.

What is the tear-out force of the Hyundai R 300 NLC-9 A?

The Hyundai R 300 NLC-9 A has a tear-out force of 209 kN.

What are the specifications of the bucket on the Hyundai R 300 NLC-9 A excavator?

The bucket of the Hyundai R 300 NLC-9 A has a capacity of 1.9 cubic meters and a width of 1.9 meters.

How much is a Hyundai R 300 NLC-9 A Crawler excavator (2013u20132015) worth?

The residual value of the Hyundai R 300 NLC-9 A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
