HX85A Hyundai excavator specs & Dimensions (2020 - 2026)

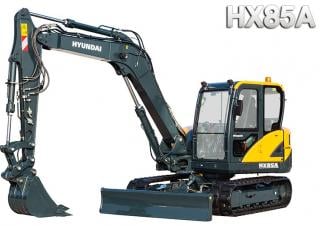

Hyundai HX85A is a Crawler Excavator manufactured since 2020. It has a weight of 8.53 tons and a track width of 450 mm. The transp…

Hyundai HX85A is a Crawler Excavator manufactured since 2020. It has a weight of 8.53 tons and a track width of 450 mm. The transport dimensions are 6.585 meters in length, 2.3 meters in width, and 2.56 meters in height. The excavator features a tear-out force of 61.5 kN, a dredging depth of 4.59 meters, and a maximum horizontal reach of 7.42 meters. The bucket width is 0.796 meters with a capacity of 0.25 cubic meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, and an overload alert system.

Crawler Excavators Hyundai HX85A
Crawler Excavators Hyundai HX85A
Crawler Excavators Hyundai HX85A
Crawler Excavators Hyundai HX85A

Visit Hyundai live at

Technical specs - HX85A Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.53 t
Transport length
6.585 m
Transport width
2.3 m
Transport height
2.56 m
Bucket capacity
0.25 m³
Undercarriage
SL
Track width
450 mm
Boom
VA/SKA
Max. Reach horizontal
7.42 m
Dredging depth
4.59 m
Tear-out force
61.5 kN
Bucket width
0.796 m
Engine manuf.
Yanmar
Engine type
4TNV98C
Engine power
49.9 kW
Displacement
3.319 l
Revolutions at max torque
1560 rpm
Max. torque
235 Nm
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai HX85A FAQ

When was the Hyundai HX85A manufactured?

The Hyundai HX85A was first produced in 2020.

How much does the Hyundai HX85A crawler excavator weigh?

The Hyundai HX85A crawler excavator weighs 8.53 tons.

What are the transport dimensions of the Hyundai HX85A crawler excavator?

The Hyundai HX85A has a transport length of 6.59 meters, a transport width of 2.3 meters, and a transport height of 2.56 meters.

What are the undercarriage specifications of the Hyundai HX85A?

The Hyundai HX85A has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Hyundai HX85A crawler excavator?

The Hyundai HX85A crawler excavator has a dredging depth of 4.59 meters, a maximum horizontal reach of 7.42 meters, and features a lateral articulated, adjustable boom.

What are the power ratings of the Hyundai HX85A?

There are no power rating specifications available for the Hyundai HX85A in the provided data.

What are the bucket specifications of the Hyundai HX85A crawler excavator?

The Hyundai HX85A crawler excavator has a bucket capacity of 0.25 cubic meters and a bucket width of 0.796 meters.

How much is a Hyundai HX85A Crawler excavator (2020u20132025) worth?

The residual value of the Hyundai HX85A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hyundai HX85A overview

Engine

EU Stage V Certified Engine

YANMAR 4TN98C engine is satisfying the most strict environmental emission regulation in the world (Reduction in PM 60%). Euro Stage V emissions certified YANMAR 4TN98C engine designed for maximum productivity and fuel efficiency.


Load Sensing System

With new load sensing system, operator work smoother regardless of load size. Fuel consumption also reduced because it delivers exact power needed.
